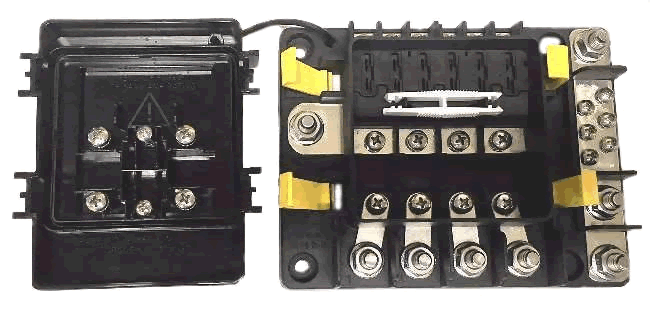

Terra Power Systems MIDI / ATO/ATC FUSE BLOCK
Protects up to 4 high-amp ( 30-200A AMI / MIDI fuses )
6 low-amp circuits 1-40A ATC/ ATO fuses.
WITH POSITIVE & NEGATIVE BUS TERMINALS

Terra Power Systems MIDI / ATO/ATC FUSE BLOCK
Max Voltage: 60V DC (limited by fuse)
Max Total Continuous Current: 600Amp
(880089 - 2 x 4/0 feed cables)
350A (880089 - 4/0 feed cable)

Max MIDI Continuous Current: 170A
Max ATO Continuous Current: 30A
Stud Size 4 x 5/16” (M8)
Operating Temp: -50 °C to +125 °C
Ingress Protection: IP59K


Click Here For More Information

Click Here For Drawing
