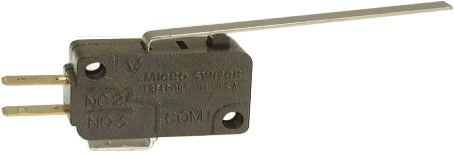

V7-1C17D8-048
| Switch Type |
MICRO SWITCH™ Miniature 15,9 mm H x 10,2 mm W x 28,8 mm L [0.63 in H x 0.4 in W x 1.14 in L] |
| Sealed |
No |
| Ampere Rating |
15 A |
| Circuitry |
SPDT |
| Actuator |
Straight Lever |
| Termination |
Quick Connect |
| Operating Temperature |
-40 °C to 82 °C [-40 °F to 180 °F] |
| Voltage |
277 Vac |
| Actuator Length |
59,5 mm [2.34 in] |
| Contact Type |
Silver |
| Operating Force (OF) |
0,44 N [1.59 oz] max. |
| Release Force |
0,05 N [0.18 oz] min. |
| Pre travel (PT) |
2,16 mm [0.085 in] max. |
| Over travel (OT) |
4,19 mm [0.165 in] min. |
| Differential Travel (DT) |
1,5 mm [0.060 in] max. |
| Operating Position (OP) |
15,2 mm ±2,159 mm [0.600 ±0.085 in] |
| Housing Material |
PCT Polyester Thermoplastic |
| High Temperature |
85 °C [185 °F] |
| Agency Approvals and Standards |
UL, CSA |
| Mounting Centers |
22,2 mm [0.88 in] |
| Tightening Torque |
0,56 N m [5.0 in lb] |
| Weight |
8 g [0.3 oz] |
| Package Height |
15,9 mm [0.63 in] |
| Package Width |
10,3 mm [0.40 in] |
| Package Length |
27,8 mm [1.09 in] |
| Comment |
CE: 61058-1; UL: E12252; CSA: LR41370 |
| Availability |
Global |
| UNSPSC Code |
30211905 |
| UNSPSC Commodity |
30211905 Snap switches |
| Series Name |
V7 |
|
|
