Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
We will be adding more content to the
Terminal & Junction block area very soon.
Please take a look through our web site, and feel free to
contact us if you have any questions
.


#10-32 Stud Junction Blocks
JB-3
#10 Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30 amp Rated.
$27.50 ea.


#10-32 Stud Junction Blocks
JB-4
#10 Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30 amp Rated.
$23.50 ea.

#10-32 Stud Junction Blocks
JB-6
#10 Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30 amp Rated.
$30.50 ea.
7 - #10 Stud Covered Water Resistant Junction Block
JB7-C
7 - #10 Stud Covered Water Resistant Junction Block
These Studs are Insulated from each other.
With Nut & Lock Washer
Corrosion Resistant
Molded Cover & Housing
(5) Terminal Openings

L= 8.059in / 204.7mm, W=3.201in / 81.3mm
H=2.250in / 57.1mm
$33.50 ea.



Black Buss Bar 3 = 5/16" Studs & 1 = 1/4" Stud Stainless Nuts & Washers
JB4-312-250B
(3) = 5/16"-18 Stud Black Buss Bar
(1) = 1/4"-20 Stud
With Stainless Nuts & Lock Washer
200 amp Rated.

$33.50 ea.


Red Buss Bar 3 = 3/8" Studs & 1 = 1/4" Stud Stainless Nuts & Washers
JB4-375-250R
(3) = 3/8 "-16 Stud Red Buss Bar
(1) = 1/4"-20 Stud
With Stainless Nuts & Lock Washer
200 amp Rated.

$29.50 ea.

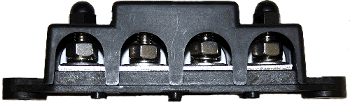

Black Buss Bar with Cover 4 = 5/16" Studs & 3 = 8-32" take off Screws  Stainless Nuts & Washers
Black Buss Bar with Cover 4 = 5/16" Studs & 3 = 8-32" take off Screws  Stainless Nuts & Washers

JB4-312-BC
(4) = 5/16"-18 Stud Black Buss Bar
(3) = 8-32" Screws
With Stainless Nuts & Lock Washer
250 amp Rated.

OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X 1/4" Mounting Holes
$31.50 ea.

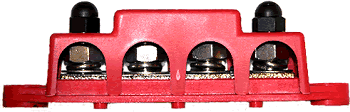

Red Buss Bar with Cover 4 = 3/8-16" Studs & 3 = 8-32" take off Screws  Stainless Nuts & Washers
Red Buss Bar with Cover 4 = 3/8-16" Studs & 3 = 8-32" take off Screws  Stainless Nuts & Washers

JB4-375-RC
(4) = 3/8 "-16 Stud Red Buss Bar
(3) = 8-32" Screws
With Stainless Nuts & Lock Washer
250 amp Rated.

OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X 1/4" Mounting Holes

$31.50 ea.


JB12-250B

(1) = 1/4-20" Stud Black Buss Bar
(12) = 8-32" Screws
With Stainless Nuts & Lock Washer
180 amp Rated.

OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X 1/4" Mounting Holes
$30.50 ea.

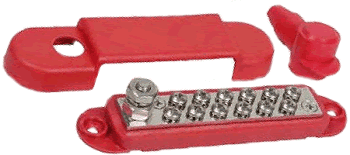

JB12-250R

(1) = 1/4-20" Stud Red Buss Bar
With Cover & Boot
(12) = 8-32" Screws
With Stainless Nuts & Lock Washer
180 amp Rated.

OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X 1/4" Mounting Holes
$29.50 ea.
#10-32 Stud Junction Block
JB1-200B
#10-32" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$6.50
#10-32 Stud Junction Block
JB1-200R
#10-32" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$7.50


1/4" Battery Stud
JB1-250B
1/4" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$9.50 ea.


1/4" Battery Stud
JB1-250R
1/4" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$9.50 ea.

150 Amp Junction Bloc
JB1-312B
5/16" Stud Junction Blocks
With Nut & Lock Washer
150 amp Rated.
$8.25 ea.

250 Amp Junction Bloc
JB1-375B
3/8" Stud Junction Blocks
With Nut & Lock Washer
250 amp Rated.
$13.50 ea.


250 Amp Junction Block
JB1-375R
3/8" Stud Junction Blocks
With Nut & Lock Washer
250 amp Rated.

$12.50 ea.

Junction Block Mounting Base for the JB1 Series Junction Blocks will Accoommodate the #10-32" to 3/8" positive & Negative Junction Blocks.
JB1-MB
Mounting Base
Positive and Negative JB1 Series Junction Blocks
Will Accommodate #10-32 , 1/4" & 3/8" Junction Blocks
$10.50 ea.

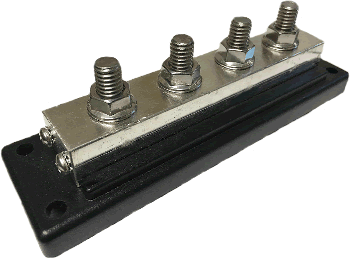

TERRA POWER SYSTEMS BusBar 600A 48 Volt 4 x 3/8" Studs
880100S
TERRA POWER SYSTEMS
BusBar 600 Amp 48 Volt 4 x 3/8" Studs
$129.50 ea.

3/8" Stud Junction Blocks With 8 8-32 Take Off Circuits.
JB1-375B-8
3/8" Stud Junction Blocks
With 8 8-32 Take Off Circuits
With Nut & Lock Washer
250 amp Rated.
L=3.312in, W=1.750in, H=2.250in
Mounting Holes 2 - 9/16" Center to Center
$21.50 ea.

3/8" Stud Junction Blocks With 8 8-32 Take Off Circuits.
JB1-375R-8

3/8" Stud Junction Blocks
With 8 8-32 Take Off Circuits
With Nut & Lock Washer
250 amp Rated.

L=3.312in, W=1.750in, H=2.250in
Mounting Holes 2 - 9/16" Center to Center
$22.50 ea.

250 Amp Junction Bloc
JB2-375B
3/8" Stud Junction Blocks
Through Wall Type
With Nuts & Washers
250 amp Rated.
$23.50 ea.
250 Amp Junction Bloc
JB2-375R
3/8" Stud Junction Blocks
Through Wall Type
With Nuts & Washers
250 amp Rated.
$26.50 ea.

5/16" Battery Stud
2002
5/16" Stud
High Amperes Connector W/Cover
6/48 Volts DC Maximum Marine Grade
Product Dimensions
1.06"H x 1.75"W x 3.30"D
Your Cost
$15.50


1/2" Stud Junction Block 400 amp Rated.
JB1-400
1/2" Stud Junction Block
With Washer & Lock Nut
400 amp Rated.
$44.50 ea.


Blue Sea 2016 Duel Terminal BusBar DC 6/48 Volt MAX Good For Marine Use.
2016
2x5/16" Studs
High Amperes Connector W/Cover
These Studs are Insulated from each other.
6/48 Volts DC Maximum Marine Grade
Your Cost
$26.50

150 Ampere Common BusBar
2303
150 Ampere Common BusBar 4 x 1/4" Stud Terminal
6/48 Volts DC Maximum Marine Grade
2"H x 2"W x 10"L
Your Cost
$24.75

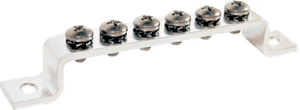

Blue Sea 2306 Grounding BusBar 6 x 8-32 Screw Terminal 100 Amperes AC/DC 48 Volt MAX Good For Marine Use.
2306
Grounding BusBar 6 x 8-32 Screw Terminal
100 Amperes AC/DC

6/48 Volts DC Maximum Marine Grade
Your Cost
$7.75

Blue Sea 2314 BusBar 5 x 8-32 Screw Terminal 100 Amperes AC/DC 6/48 Volt MAX Good For Marine Use.
2314
MiniBus 100 Amps
5X 8-32 Screw Terminals with cover

100 Amperes AC/DC
6/48 Volts DC Maximum Marine Grade

Your Cost
$18.75


Blue Sea 2315  BusBar 100 Amperes AC/DC 6/48 Volt MAX Good For Marine Use.
2315
MiniBus 100 Amps, 4X 10-32 Stud Terminal W/Cover

100 Amperes AC/DC
6/48 Volts DC Maximum Marine Grade

Your Cost
$18.75

DualBus 100 Ampere Common BusBar
2701
DualBus 100 Ampere Common BusBar's
5 x 8-32 Screw Terminal
Combines Negative and Positive buses on one block

Your Cost
$20.25

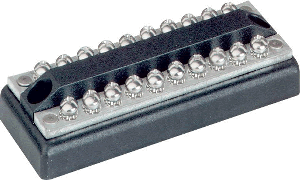

DualBus 100 Ampere Common BusBar
2702
DualBus 100 Ampere Common BusBar
10 x 8-32 Screw Terminal
Combines Negative and Positive buses on one block
Your Cost
$26.50


Cover for DualBus PN 2701
2709

Cover for DualBus PN 2701
Your Cost
$15.75
Cover for DualBus PN 2710
2710

Cover for DualBus PN 2702
Your Cost
$15.25


Cover For BusBar PN 2301 and PN 2303
2715

Cover For BusBar PN 2301 and PN 2303
Your Cost
$4.50


Click Here For Drawing
150 Amperes DC 6/48 Volt Dual Positive and Negative Bus Bars.

2723
150 Amperes DC
6 / 48 Volts DC Marine Grade
Dual 5/16 Studs with 5x10-32 Screw Terminals
Positive and Negative Busbar's.
Clear polycarbonate cover snaps on.
Your Cost
$39.50

Jumper Terminal .
Jumper Terminals
Cole Hersee
46210-02
JT-R = $24.50 ea.
46210-03
JT-B = $24.50 ea
