174-S2 Series Mechanical Products Circuit Breakers
14 volt dc max. Type III Manual Reset DC Circuit Breakers.

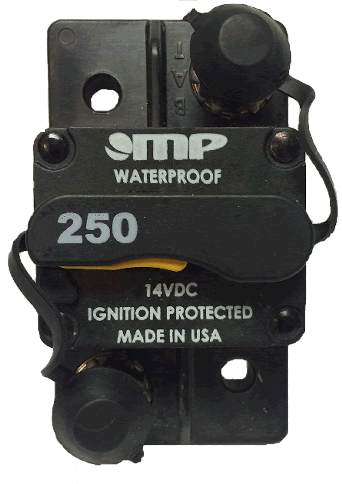

250 Amp Part Number = 174-S2-250-2
HI-AMP Type III Circuit Breakers
Manual Reset Circuit Breaker.
Conforms to Mil-STD-202 for corrosion, humidity and shock protection.
Mil-STD-204 for vibration protection.
3/8-24" Stainless Steel Stud & Nuts
SAE J1171 compliant, ignition protected
Interrupt capacity SAE J1625, ABYC-E11
IP67 dust and waterproof rated
Applications: Used in auxiliary accessory circuits where you need hi-amp current & protection too. Cars,Trucks, Buses, RV's and Marine applications.
Click Here or on the Circuit Breaker Image for a Line Drawing.
Click Here For More Information And Drawing
