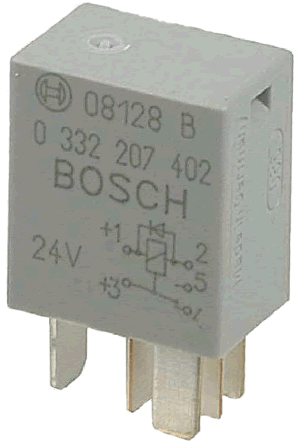

10 Amp Mini Relay
SPDT
Normally Open and Normally Closed Circuit
NC = 10 Amps
NO = 20 Amps
Cap Material = Plastic

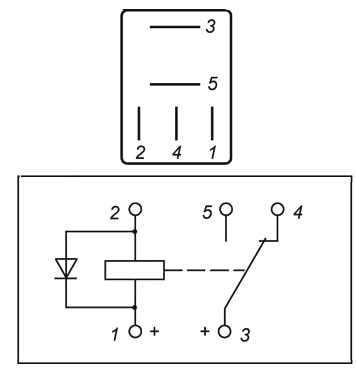

5 Terminals:
# 1 (6.3mm x 0.8mm) .187 12 Volt Off and On Power To Activate The Relay.
# 2 (6.3mm x 0.8mm) .187" Ground To Activate Relay
# 3 (6.3mm x 0.8mm) .250" Main Battery Power To Relay.
# 4 (6.3mm x 0.8mm) .187" Normally Closed Connection to the # 3 Terminal.
# 5 (6.3mm x 0.8mm) .250" Normally Open Connection to the # 3 Terminal To Load from Relay.
24 volts
410 Ohms Coil Resistance
Intermittent Duty
Unsealed
