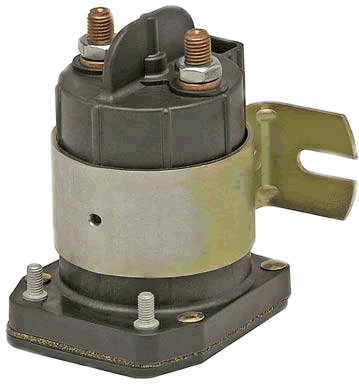

12 Volt DC 225 Amp Silver Contact Continuous Duty Relay.
Continuous Duty DC Relay 225 Amp with Silver Contact 600 amp Inrush. Auxiliary Starter Relays, Universal heavy duty electrical relays.

Cole Hersee 24812-01 Relay, 12v Continuous Duty type Heavy Duty Relays.
Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
Click Here For Battery Isolators And DC to DC Equalizers Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Electrical Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Speedometer Cable & Ratio Box  Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Custom length Battery Cables made to your order
Click Here to View Starter Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Circuit Protection Devices Self Resetting Circuit Breakers From 10 to 150 Amp.
12 volt and 24 volt, 80 amp to 200 amp Momentary and Continuous Duty type Relays
universal ignition switches,heavy duty toggle switches,push pull type switches
Click Here to Vist Our Electrical Components Area. Electrical Plugs, Special  Electrical Connectors  & Wiring Parts.
Electric Fan Relay Wiring Kits,Thermostat Switches For Electric Cooling Fans.
Click Here to View Specials Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!

The 24812-01 is a Continuous duty 225 amps with Silver Contact and 600 amp Inrush.
General Specifications Part Number 24812-01
The 24812-01 is a Continuous duty 225 Amp Rating.
Make & Brake Amperage is 225 amps with a 600 amp inrush .
The Terminal studs are 5/16 x 24.
The Coil Terminal; Studs are 10-32 .
The 24812-01 is a L bracket mounting.
The 24812-01 has Silver Contacts
The 24812-01 had a insulated circuit activating coil.
The Coil Resistance is 8 ohms +/-
The Coil Activating amperage is 1.5 amps
The life cycle 50,000 minimum.
The 24812-01 is water resistant.
The bracket mounting holes are 5/16" x 19/32" on 2 13/64" centers.
