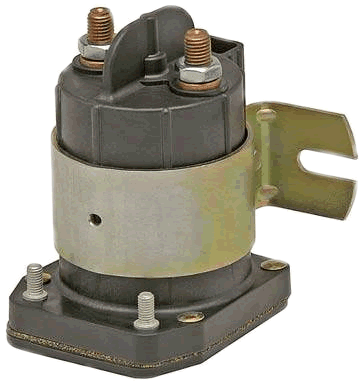

Cole Hersee 24 Volt DC 225 Amp Continuous Duty Relay 24824-01

Cole Hersee 24824-01 24 Volt DC 225 Amp Continuous Duty Silver Contact Relay.
24 volt DC,225 amp 600 Amp Inrush Auxiliary Starter Relays, Universal Relay Wiring kit for heavy duty electrical loads

,Cole Hersee Relays, 12v & 24v DC Momentary and Continuous Duty type Heavy Duty Relays.

Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .

General Specifications Part Number 24824-01
The 24824-01 is a Continuous Duty Silver Contact 225 amp rating.
Make & Brake Amperage is 225 amps with a 600 amp inrush .
The Terminal studs are 5/16 x 24.
The Coil Terminal; Studs are 10-32 .
The 24824-01 is a L bracket mounting.
The 24824-01 has Silver Contacts & Copper disk.
The 24824-01 had a insulated circuit activating coil.
The Coil Resistance is 30-31 ohms +/-
The Coil Activating amperage is .79 amps
The life cycle 30,000 minimum.
The 24824-01 is water resistant.
The bracket mounting holes are 5/16" x 19/32" on 2 13/64" centers.
