996152151 Hella Amp 12 Volt 10 Amp Time Delay Relay Adjustable 0-900 Seconds.

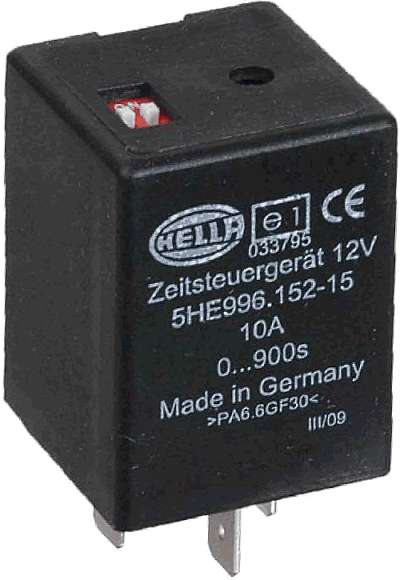

996152151 Hella 12 Volt 10 Amp Time Delay Relay
Delay On Operate
Adjustable From 0-900 Seconds
Delay on Operate

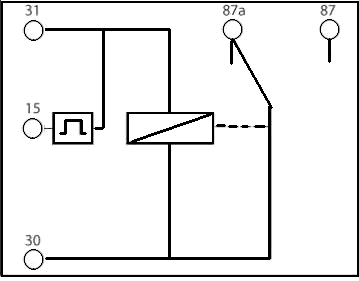

SPDT 5 Terminals
# 31 .250" (6.3mm x 0.8mm) Ground To Relay
# 15 .250" (6.3mm x 0.8mm) 12 Volt Off and On Power To Activate The Relay
# 30 .250" (6.3mm x 0.8mm) Main Battery Power To Relay
#87a .250" (6.3mm x 0.8mm) Normally Closed Circuit from Relay
#87 .250" (6.3mm x 0.8mm) Normally Open Circuit from Relay
Continuous Duty
5HE996152151
996.152.151
