RA400112NN 40 Amp Mini Relay Voltage Rating 12V DC.

RA400112DN
40 Amp Mini Relay
Voltage Rating 12V DC
40 Amp Cole Hersee High Capacity Mini Relay
SPST
4 Terminals
With Diode
# 85 .250 Ground To Activate Relay
# 86 .250 12 Volt Off and On Power To Activate The Relay
# 30 .250" Main Battery Power To Relay
#87 .250" To Load from Relay
12 Volts
40 Amps
Continuous Duty

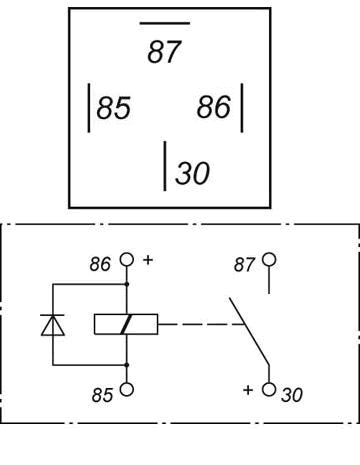

RA400112DN Relay Wiring
