40 Amp Cole Hersee High Capacity Mini Relay
High Capacity Mini Relay
SPDT
Cap Material = Plastic

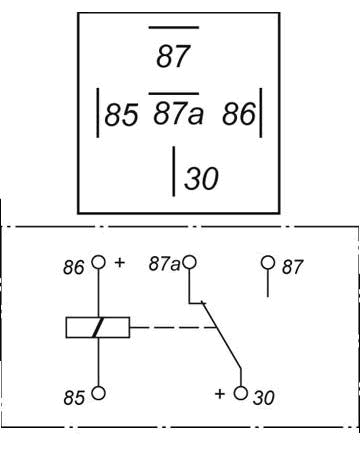

5 Terminals:
# 85 .250" Ground To Activate Relay
# 86 .250" 12 Volt Off and On Power To Activate The Relay.
# 30 .250" Main Battery Power To Relay.
# 87a .250" Normally Closed Connection to the # 30 Terminal.
# 87 .250" Normally Open Connection to the # 30 Terminal To Load from Relay.
12 volts
40 amps
Continuous Duty
Unsealed
Can Be wired to be used for Reversing Small Permanent Magnet Motors.
"2 Relays are Required"
Continuous Duty
