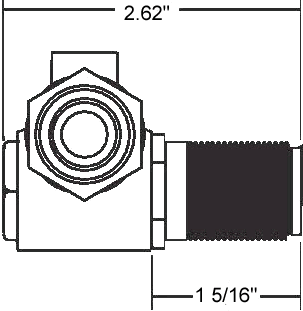

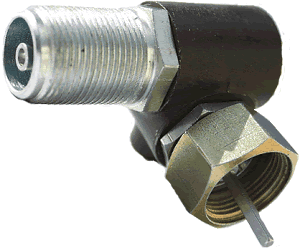

90 Degree Angle Adapter 7/8"- 18 Thread

90 Degree Angle Adapter 7/8"- 18 Thread Available in Direct Drive and Reverse Rotation.
7/8"- 18 Thread

Available in Direct Drive and Reverse Rotation.
Solve Speedometer Cable & Housing Tight Bends.
Transmission Clearance, Engine Tachometer Take Off.
Many Drive and Driven Tip Configurations Are Available.
Dual Drive Box's Are Available.
Reverse Cable Direction at Transmission.
Stocking ratios
.250:1.000 , 500:1
.000, 1.000 :1.000, 1.500 :1.000, 2:1.000

Special Ratios May Be Available Upon Request

Drive Tips & Driven Shafts Available For the 400 Series 90 Degree Boxes
HR124
.152 X .104 Male sq, Drive Tip
.152" Tang x .104" Square
May Replace GM# 867209

For AC Brand Adapter


HR176
.172" Tang x .104" Square
.172" Tang x .104" Square
SW# 101454
GM# 474299
For Stewart Warner Box

HR180
.172" Tang x .203" Tang
.172" Tang x .203" Tang
Driven
.191" Slot, 1 5/16" Connector
HR177
.172" Tang x .150" Square
.172" Tang x .150" Square
Driven
.105" Int. Sq., 1 5/16" Connector
Driven
.213" Slot, 1 5/16"Connector
HR178
.172" Tang x .152" Tang
.172" Tang x .152" Tang
Driven
.150" Int. Sq., 1 5/16" Connector
HM146
Converts .152 Tang Slot To .104" Square Hole. HM146. 7710, GM # 25032338
Converts .152" Tang Slot
To .104" Square Hole
For AC Brand Adapters
GM # 25032338
HR179
.172" Tang x .187" Tang
.172" Tang x .187" Tang
Driven
.161" Slot, 1 5/16" Connector
