Cole Hersee
To
ggle Switches, Rocker Switches, Rotary Switches,Push Pull Switches.

Cole Hersee 25 amp Toggle Switches
5520
Your Cost $11.75

Circuitry SPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
O-Ring Sealed.
Up Position: On
Down Position: Off
Terminals 2 screw

Cole Hersee 25 amp Toggle Switches
5582
Your Cost $10.50

Circuitry SPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts:Silver
Housing:Plastic with plated steel cap
Up Position:On
Down Position: Off
Terminals 2 screw



6-36 Volt Plastic Coated Housing, O-Ring Seal inside of Stem, (2) 8" Leads for Wire Connections
5582-10
Your Cost $22.65



Circuitry SPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts:Silver
Up Position:On
Down Position: Off
Plastic Coated Housing, O-Ring Seal inside of Stem, (2) 8" Leads for Wire Connections
Circuitry SPDT
Electrical Rating 25A
at 12V DC 6-36 Volt
Contacts Silver
Activates (2) Circuits Individually from
a Common Feed
Housing Plastic
with plated steel cap
Up Position On
Down Position On
Terminals 3 screw Handle
Material Nickel-plated brass
Handle Type Standard
Handle Size: inches 11/16"
Mounting Hardware Nickel plated brass face and hex nut Mounting Stem Material Nickel plated brass
Mounting Stem Dimensions 15/32" -32 thread, 15/32" (11.90mm) Long Mounting Hole Dimension 15/32" (11.90mm) Panel Hole Panel Thickness Up to 1/4" (6.35mm) thick

5586 SPDT On- OFF-ON 25 Amp Toggle Switch
5586
Your Cost $12.50


Circuitry SPDT

ON-OFF-ON Switch,
6-36 Volt
Electrical Rating 25A at 12V DC
Contacts Silver
Housing Plastic with plated steel cap

Activates (2) Circuits Individually from a Common Feed,
(3) Threaded Tabs with Screws for Wire Connections

Cole Hersee 25 amp Toggle Switches
5588
Your Cost $18.50


Circuitry: DPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: On
Down Position: Off
Terminals 4 screw


DPDT 2 Position  On - On Cole Hersee 25 amp Toggle Switches
5590
Your Cost $18.90




Circuitry DPDT
2 Position
6-36 Volt
Electrical Rating 25A at 12V DC
Contacts Silver
Housing Plastic with plated steel cap
Up Position On
Down Position On
Terminals 6 screw
Handle Material Nickel-plated brass
Handle Type Standard
Handle Size: inches 11/16"
Long Handle Size: mm 17.46mm
Mounting Hardware Nickel plated brass face and hex nut Mounting Stem Material Nickel plated brass
Mounting Stem Dimensions 15/32" -32 thread, 15/32" (11.90mm) Long Mounting Hole Dimension 15/32"
(11.90mm) Panel Hole Panel Thickness Up to 1/4" (6.35mm) thick





Cole Hersee 25 amp Toggle Switches
5592
Your Cost $18.79


Circuitry DPDT
3 Position
6-36 Volt
Electrical Rating 25A at 12V DC
Contacts Silver
Housing Plastic with plated steel cap
Up Position On
Center Position Off
Down Position On
Terminals 6 screw
Handle Material Nickel-plated brass
Handle Type Standard
Handle Size: inches 11/16"
Long Handle Size:17.46mm
Mounting Hardware Nickel plated brass face and hex nut Mounting Stem Material Nickel plated brass
Mounting Stem Dimensions 15/32" -32 thread, 15/32" (11.90mm) Long Mounting Hole Dimension 15/32"
(11.90mm) Panel Hole Panel Thickness Up to 1/4" (6.35mm) thick


Off-On Toggle Switch Circuitry SPST.

55014
Your Cost $7
.25

55014-05
Your Cost $8.25
O-RING SEAL IN STEM


Off-On Toggle Switch
Circuitry SPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
The 55014-05 is O-Ring Sealed
15/32-32 Threaded Stem
Up Position: On
Down Position: Off
2-1/4"(6.4mm) Push On Blade Terminals






On-On Toggle Switch Circuitry SPDT.

55015
Your Cost $8
.50


Circuitry SPDT
Electrical Rating 25A
at 12V DC 6-36 Volt
Contacts Silver
Activates (2)
Circuits Individually
from a Common Feed
Housing Plastic with plated steel cap
Up Position On
Down Position On
Material Nickel-plated brass
Handle Type Standard
Handle Size: inches 11/16"
Mounting Hardware Nickel plated brass face and hex nut Mounting Stem Material Nickel plated brass
Mounting Stem Dimensions 15/32" -32 thread, 15/32" (11.90mm) Long Mounting Hole Dimension 15/32" (11.90mm) Panel Hole Panel Thickness Up to 1/4" (6.35mm) thick

3
-1/4"(6.4mm)
Push On Blade Terminals
ON-OFF-ON Switch Electrical Rating 25A at 12V DC
55016
Your Cost $8.60


Circuitry SPDT

ON-OFF-ON Switch,
6-36 Volt
Electrical Rating 25A at 12V DC
Contacts Silver
Housing Plastic with plated steel cap

Activates (2) Circuits Individually from a Common Feed,
(3) .250" Blade Terminals Wire Connections


55017 Toggle Switch 25 Amp @ 12 Volt
55017
Your Cost $12.50
Circuitry: DPST
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: On
Down Position: Off
(4) 6.4mm Blade Terminals for Wire Connections


55018 Cole Hersee 25 amp Toggle Switches
55018
Your Cost $12
.25


Circuitry DPDT
2 Position
6-36 Volt
Electrical Rating 25A at 12V DC
Contacts Silver
Housing Plastic with plated steel cap
Up Position On
Down Position On
6 ( 6.4mm 1/4" Blade Terminals)
Handle Material Nickel-plated brass
Handle Type Standard
Handle Size: inches 11/16"
Long Handle Size: mm 17.46mm
Mounting Hardware Nickel plated brass face and hex nut Mounting Stem Material Nickel plated brass
Mounting Stem Dimensions 15/32" -32 thread, 15/32" (11.90mm) Long Mounting Hole Dimension 15/32"
(11.90mm) Panel Hole Panel Thickness Up to 1/4" (6.35mm) thick





55018-01 Reversing Polarity Switch (ON-ON) DPDT
55018-01
Your Cost $14.75






Reversing Polarity Switch
(
ON-ON)
6-36 Volt
Circuitry: DPDT Changes Direction of Permanent Magnet Motors,
(4) 6.4mm Blade Terminals for Wire Connections
Electrical Rating:
25A at 12V DC





Cole Hersee 25 amp Toggle Switches
55019
Your Cost $12
.25




Circuitry DPDT
Electrical Rating 25A at 12V DC
6-36 Volt
Contacts Silver
Housing Plastic with plated steel cap
Up Position On
Center Position Off
Down Position On
(6) 6.4mm Blade Terminals for Wire Connections


Cole Hersee 25 amp Toggle Switches
55020
Your Cost $14.65


Circuitry SPST-Momentary
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: Off
Center Position: Momentary On
Terminals 2 screw




SPST Momentary Plastic Coated Housing,
55020-04
Your Cost $27.50

Circuitry: SPST Momentary
Electrical Rating:
6-36 Volt 25A at 12V DC
Contacts:Silver
Up Position:On
Down Position: Off
Plastic Coated Housing,
O-Ring Seal inside of Stem
(2) 8" Leads for Wire Connections
Cole Hersee 25 amp Toggle Switches
55021
Your Cost $15.25


Circuitry: SPDT-Momentary
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts:Silver
Housing:Plastic with plated steel cap
Up :Momentary On
Center Position:Off
Down :Momentary On
Terminals 3 screw
Cole Hersee 55021-07 PVC Coated  25 amp Toggle Switches
55021-07
Your Cost $27.75

PVC Coated Toggle Sw
Circuitry SPDT

Momentary ON-OFF-ON Switch,
6-36 Volt
Rating 25A at 12V DC Contacts Silver
15/32" Stem
O-Ring Seal Stem
Plastic Coated Housing (3) Leads

Cole Hersee 25 amp Toggle Switches Reversing Switch, Changes Direction of Permanent Magnet Motors.

55033-01
Your Cost $15.55



Circuitry: SPDT-Momentary
6-36 Volt
Activates (2) Circuits Individually
from a Common Feed,
(3) 6.4mm Blade Terminals
Mom On-Off-Mom On
15/32-32 Threaded Stem
2-36 Volt 25 Amp@ 12 Volts



PVC Coated Toggle Sw 6-36 Volt 25 Amp @ 12 Volt
55036
Your Cost $27.75

PVC Coated Toggle Sw
Circuitry SPDT

ON-OFF-ON Switch,
6-36 Volt
Rating 25A at 12V DC Contacts Silver
15/32" Stem
Plastic Coated Housing
(3) 9 1/2" Leads with Brass Bullet Terminals
Activates (2) Circuits Individually from a common Feed. Replaces 55036-02



Cole Hersee 25 amp Momentary On Toggle Switches
55037
Your Cost $9.75


Circuitry SPST-Momentary
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: Off
Center Position: Momentary On
2-1/4"(6.4mm) Push On Blade Terminals



Cole Hersee 25 amp Toggle Switches Reversing Switch, Changes Direction of Permanent Magnet Motors.
55046
Your Cost $18.25

Reversing Polarity Switch
(
ON (Momentary)-OFF-ON (Momentary)
6-36 Volt
Circuitry: DPDT-Momentary
Changes Direction of Permanent Magnet Motors,
(4) 6.4mm Blade Terminals for Wire Connections
Electrical Rating: 25A at 12V DC


Normally ON - Mom Off with O-Ring in Stem

55049-01
Your Cost $14
.95


Circuitry SPST
Momentary Action

Normally ON - Mom Off

6-36 Volt
Electrical Rating:
25A at 12V DC
Contacts: Silver
O-Ring Seal in Stem
Housing: Plastic with plated steel cap.
Terminals (2) 6.4mm (1/4")


Cole Hersee 25 amp Toggle Switches

55054
Your Cost $21.25



Circuitry: DPDT-Momentary
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: Momentary On
Center Position: Off
Down Position: Momentary On
Terminals 6 screw


Cole Hersee 25 amp Toggle Switches
55065-03
Your Cost $20.50

Circuitry: DPDT-Momentary
6-36 Volt
Electrical Rating: 25A at 12V DC
Housing: Plastic with plated steel cap
Up Momentary On
Center: Off
Down Momentary On
(6) 6.4mm Blade Terminals

Cole Hersee 25 amp Toggle Switches
55081
Your Cost $20.25

Circuitry: DPDT
Electrical Rating: 25A at 12V DC
6-36 Volt
Housing: Plastic with plated steel cap
Up Momentary On
Center: Off
Down On
(6) 6.4mm Blade Terminals

Cole Hersee 25 amp Toggle Switches
55088
Your Cost $10.70
Circuitry: SPDT
6-36 Volt
Electrical Rating: 25A at 12V DC
Contacts: Silver
Housing: Plastic with plated steel cap
Up Position: On
Center Position: Off
Down Position: Momentary On
Terminals 3 screw


Cole Hersee 6-36 Volt Toggle Switch 30 Amp at 12 VDC .  OFF -ON .
551840
Your Cost $15.75




Circuitry SPST
OFF-ON Switch,
Voltage, 6-36V
Electrical Rating 30A at 12V DC
Contacts Silver
Die Cast Zinc Metal Casing.
Activates (1) Circuit

(2) Threaded Tabs with Screws for Wire Connections


Cole Hersee 6-36 Volt Toggle Switch 30 Amp at 12 VDC . ON - OFF -ON .
551842
Your Cost $21.75




Circuitry SPDT
ON-OFF-ON Switch,
Voltage, 6-36V
Electrical Rating 30A at 12V DC
Contacts Silver
Die Cast Zinc Metal Casing.
Activates (2) Circuits Alternately

from a Common Feed,
(3) Threaded Tabs with Screws for Wire Connections


Recessed Toggle Switch Guards Prevent Accidental actuation of a toggle switch and protect switch from damage.

5543-15
Your Cost $3.55


Recessed Toggle Switch Guards Prevent Accidental actuation of a toggle switch and protect switch from damage.

Flush Mount
Fits 15/32" Toggle Switches
Fits in 2" Panel Hole
3-3/16" OD Flange Circle
1" Deep

58027-11 SPDT Momentary Weather-Resistant Rocker Switch
58027-11
Your Cost $15.25




SPD
T Momentary
Weather Sealed
Mom On - Off - Mom On (DPDT)
12-36V 25 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
(6) 6.4mm Blade Terminals for Wire
Connections.




Cole Hersee Revresing Switch Application Rocker Switches 12-24 Volt.
58311-18
Your Cost $23.75


Reversing Polarity Switch

ON-OFF-ON
Momentary ON Off To Center Momentary ON
Circuitry: DPDT-Momentary
Changes Direction of Permanent Magnet Motors,
(4) 6.4mm Blade Terminals for
Wire Connections
Panel Snap-In Mounting
1.45" X 0.83" Rectangular Hole
(36.8mm x 21.1mm)

Electrical Rating: 25A at 12V DC
Electrical Rating: 12A at 24V DC


Cole Hersee SPST,Rocker Switches 12 volt
58328-100
Your Cost $16.50


Rocker Switch
SPS
T
Off - On
12 Volt Pilot Light
25 Amp at 12V
3 Terminal
Dependent Ground Circuit
Multiple Colored Lights
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
(2) 6.4mm Blade Terminals for Wire Connections.


Cole Hersee SPST,Rocker Switches 12 volt
58328-101
Your Cost $18.50


Rocker Switch
SPS
T
Off - On
12 Volt Pilot Light
25 Amp at 12V
4 Terminals
Independent Ground For Light

Insulated Light Circuit
Multiple Colored Lights
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
(2) 6.4mm Blade Terminals for Wire Connections.


Cole Hersee SPDT,Rocker Switches 12 volt
58328-103
Your Cost $23.50


Rocker Switch
SPD
T
On-Off - On
12 Volt Pilot Light
25 Amp at 12V
4 Terminals
Dependent Ground For Light

Add Ground Wire for Light Circuit
Multiple Colored Lights
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
(2) 6.4mm Blade Terminals for Wire Connections.


58332-22 SPDT Momentary Weather-Resistant Rocker Switch
58332-22
Your Cost $36.60


Weather-Resistant Rocker Switch
SPD
T Momentary
Mom On - Off - Mom On
The 55332-22 is supplied with one Black and one Gray snap-on actuator.
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for Marine Applications,
(6) 6.4mm Blade Terminals for Wire
Connections.

Cole Hersee Marine Application Rocker Switches 12-36 Volt
M58031-01
Your Cost $25.50

Marine Applications Rocker Switch
SPS
T
Off - On
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for ,
(2) 6.4mm Blade Terminals for Wire
Connections.

Cole Hersee Marine Application Rocker Switches 12-36 Volt

M58031-02
Your Cost $25.50

Marine Applications Rocker Switch
Rocker Switch
SPDT
On - Off - On
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"

Rectangular Hole

(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for Marine Applications,
(3) 6.4mm Blade Terminals for Wire
Connections.


Cole Hersee Marine Application Rocker Switches 12-36 Volt
M58031-04
Your Cost $26.50


Marine Applications Rocker Switch
Rocker Switch
DPS
T
Off - On
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for Marine Applications,
(4) 6.4mm Blade Terminals for Wire
Connections.


Cole Hersee Marine Application Rocker Switches 12-36 Volt

M58031-07

Your Cost $23.50


Marine Applications Rocker Switch
Rocker Switch
SPS
T
Off - Mom On
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for Marine Applications,
(2) 6.4mm Blade Terminals for Wire
Connections.



Cole Hersee Marine Application Rocker Switches 12-36 Volt
M58031-09
Your Cost $32.65


Marine Applications Rocker Switch
Rocker Switch
DPD
T
Momentary
Mom On - Off - Mom On
12-36V
20 Amp at 12V
"Snap-In" Panel Mount
1.48" x 0.83"
Rectangular Hole
(36.8mm x 21.1mm)
Black Neoprene Rocker Seal, Ignition Protection for Marine Applications,
(6) 6.4mm Blade Terminals for Wire
Connections.

Cole Hersee M58031 Series Rocker Switch mounting brackets.
82159-1

Your Cost $2.50


Rocker Switch Bracket Fits Cole Hersee 56000/57000/M58000
Series Marine Rocker Switches End caps.


Cole Hersee M58031 Series Rocker Switch Mounting Brackets.
82159-2

Your Cost $2.75


Rocker Switch Bracket
Fits Cole Hersee 56000/57000/M58000
Series Marine Rocker Switches
Center Section


Cole Hersee M58031 Series Rocker Switch Mounting Brackets.
82159-3

Your Cost $3.50


Rocker Switch Bracket Fits Cole Hersee 56000/57000/M58000
Series Marine Rocker Switches
Single Switch Application. Fits Opening 1.9" X 0.98"
(48.3 X 25.0mm)

Rectangular Hole


3 Toggle Switch Panel With Switch Guard.
74030
Your Cost $20.50





Toggle panel is a 3 position panel. Prevents accidental actuation of toggle switch. Automotive Switch Panels for Marine,Racing & Restoration Applications.
Mounts with two #4 screw holes
Dimensions:
4 13/16"L x 2"H x 2"D
Accepts toggles with .441” mounting stems and longer
.

Toggle Switch Guard Helps to prevent accidental actuation of a toggle switch and protect it from damage.
82465
Your Cost $2.34




Toggle Switch Guard
Helps to prevent accidental actuation of a toggle switch and protect it from damage.

For switches with 15/32" diameter.
Stamped On -Off.
1" x 2.125" (25.4 x 54.0mm).
Two .140" (3.6mm) mounting holes 1.87" (47.6mm) on centers.


Cole Hersee M58031 Series Rocker Switch Mounting Brackets.
87167-01

Your Cost $21.50

Fits Cole Hersee 56000/57000/M58000
Series Marine Rocker Rocker Switch Bracket Mounting Kit, Holds (3) to (5) Assembled Kit Mounts Under or On Top of Panel Switches End Caps.



75701 20 Amp Cole Hersee 3 Positions Switch Mom On - Off - Mom On Rotary Switch
75701
Your Cost $57.50



Cole Hersee 3 Positions Switch
Mom On - Off - Mom On Rotary Switch
Circuitry: SPDT
Silver-laminated contacts.
Mounting: 7/16-28 Threaded Stem
20 Amp Rating.

(3) Threaded 8-32 Tabs Screws
Rotary Switch.




3 Positions Momentary Switch Reversing Polarity Switch for Permanent Magnet Motors, 50 Amp Rating
75712-04
Your Cost $68.5


Cole Hersee

3 Positions
Momentary Switch FORWARD & REVERSE Rotary Switch
Circuitry: DPDT-Momentary
Silver-laminated contacts.
Mounting Stem: 1/2" -20
Changes Direction of Permanent Magnet Motors, 50 Amp Rating.

(4) Threaded Tabs Screws Connections

Forward/Reverse Rotary Switch.


90005-03 , 3 Positions Momentary Reversing Motor Switch for Permanent Magnet Motors, 15 Amp Rating
90005-03
Your Cost $73.50
SOON TO BE NLA

Key Actuated Cole Hersee
3 Positions
Momentary Switch
FORWARD & REVERSE Rotary Switch
Circuitry: DPDT-Momentary
Silver-laminated contacts.
Mounting Stem: 1/2" -20
O-Ring Seal.
Changes Direction of Permanent Magnet Motors, 15 Amp Rating.

(4) Threaded Tabs Screws Connections

Forward/Reverse Rotary Switch.


3 Positions Key Switch On - Off - On 10 Amp Rating
95593
Your Cost $25.75


ON-OFF-ON Key Switch,
Circuitry:SPDT 2
Individually Coded Keys Operate,
Lock Cylinder.
(3) Threaded Tabs with Screws for Wire Connections, 10 Amp Rating.
O-Ring Seal in Stem
of Die Cast Zinc Casing

Mounting Stem: 3/4- 20".


Weatherproof Toggle Boot
81255
Your Cost $8.25

Weatherproof Toggle Boot Seal Toggle Half Covered.
Description: Weatherproof
Toggle Boot Seal (gray).

Toggle Switch Face Plate,
44216
Your Cost $1.75




Toggle Switch Face Plate,
Fits 15/32" Mounting Stems,
Imprinted ON-OFF
Nickel Plated Steel
Cole Hersee 8250

Weatherproof Toggle Boot
81264
(Gray)
Your Cost $10.98


Weatherproof Toggle Boot Seal Toggle Fully Covered.
Available:
81264-01 Black
81264-02 Blue
81264-03 Clear
81264-04 Green
81264-05 Red
81264-06 Brown,
81264-07 Yellow
Toggle Switch Weatherproof Boots


Aircraft Style Toggle Switch Protector, Prevents Accidental Activation of Toggle
(44218 Red )
Your Cost $9.50


Aircraft Style Toggle Switch Protector.
Prevents Accidental Activation of Toggle Switch
Fits 15/32" Mounting Stems.
Available:

44232 Blue


44231
Green

44230 Yellow


Eaton / Cutler-Hammer One Hole Mount for 3 Position Switches
8496K2
Your Cost $61.50

Eaton / Cutler-Hammer
One Hole Mount for 3 Position Switches
.
Fits 15/32" Mounting Stems,
Returns Toggle Lever to Center Position from Either Extreme, Phenolic Red Lever.
Switch Guard,MIL-G-7703 & MS25223-2

Click Here
For More Information
SZL-VL Series miniature type limit switches are specially designed for applications of small mounting space.

SZL-VL-B
Being Replaces By
SZL-VL-S-B-N-M

Your Cost $81.50



Honeywell Miniature Limit Switch
Single Pole Double Throw
NC & NO Switch Configuration
Maximum Current Amp Rating 5A
Operating Temperature Range
-20 to
60 °C
VL Series

Click Here
For More Information
SZL-VL-G Series miniature type Wobble limit switches are specially designed for applications of small mounting space.

SZL-VL-S-G-N-M
Your Cost $105.50




Honeywell Wobble Stick Limit Switch
Single Pole Double Throw
NC & NO Switch Configuration
Maximum Current Amp Rating 5A
Operating Temperature Range
-20 to 60 °C
VL Series
Rplaces
SZL-VL-G


1NT1-2 SPST Momentary On HONEYWELL MICROSWITCH TOGGLE SWITCH
1NT1-2
Your Cost $38.50

Honeywell Micro Switch,
Toggle Switch , Sealed, SPST,
10 Amps
(On) - (Off)
Silver Contact
2 Screw Terminal
Special Applications Usage
1NT1-6 SPST On/ Off HONEYWELL MICROSWITCH TOGGLE SWITCH
1NT1-6
Your Cost $49.50

Honeywell Micro Switch,
Toggle Switch , Sealed, SPST,
10 Amps,
Momentary(On)-Off
Silver Contact
2 Screw Terminal
Special Applications Usage
1NT1-7 SPDT HONEYWELL MICROSWITCH TOGGLE SWITCH
1NT1-7
Your Cost $47.50


Honeywell Micro Switch,
Toggle Switch , Sealed, SPDT,
10 Amps,
Momentary (On)-Off-(On)
Silver Contact
3 Screw Terminal
Special Applications Usage




2NT1-70  DPDT On-Off-On HONEYWELL MICROSWITCH TOGGLE SWITCH
2NT1-5
Your Cost $81.50


Honeywell Micro Switch,
Toggle Switch , Sealed, DPDT,
10 Amps,
Momentary (On)-Off -On
Silver Contact
6 Screw Terminal
Special Applications Usage
2NT1-7  DPDT On -Off-On HONEYWELL MICROSWITCH TOGGLE SWITCH
2
NT1-7
Your Cost $57.50

Honeywell Micro Switch,
Toggle Switch , Sealed, DPDT,
10 Amps,
Momentary (On)-Off -(On)
Silver Contact
6 Screw Terminal
Special Applications Usage
2NT1-70  DPDT On -On-On HONEYWELL MICROSWITCH TOGGLE SWITCH
2
NT1-70
Your Cost $103.50

Honeywell Micro Switch,
Toggle Switch , Sealed, DPDT,
10 Amps,
Momentary (On)-On -(On)
Silver Contact
6 Screw Terminal
Special Applications Usage
2TL1-5 Momentary (On)-OFF- On
2
TL1-5
Your Cost $95.50

Honeywell Micro Switch,
Toggle Switch , Sealed, DPDT,
10 Amps,
Momentary (On)-OFF- On
Silver Contact
6 Screw Terminal
Special Applications Usage

Click Here For More Information

V7-1C17D8-048 Honeywell Micro Switch 15 Amp Rated.
V7-048
Your Cost $15.50



Honeywell Micro Limit Switch
SPDT 11 Amps,
Normally Open & Normally Closed Circuit
3- .187/ 3/16" Male Blade Terminals
Special Applications Usage
V7-1C17D8-048

V7-1C17D8-201 Honeywell Mirco Switch
V7-201
Your Cost $13.50



Honeywell Micro Limit Switch
SPDT 11 Amps,
Normally Open & Normally Closed Circuit
3- .187/ 3/16" Male Blade Terminals
Special Applications Usage
V7-1C17D8-201

Click Here for More Information
V7-1B17D8-207 Honeywell Micro Switch 15 Amp Rated.

V7-207
Your Cost $12.75

Honeywell Micro Limit Switch, SPDT 11 Amps
Normally Open & Normally Closed Circuit.
3= .187" Male Blade Terminals V7-2b17d8-207




Cole Hersee Push Pull Switch
5011
Your Cost $12.75

Push-Pull Switch
Positions Off-On, Normally Off
No. of Circuits 1
Circuitry SPST
Electrical Rating 10A at 12V DC
Mounting Steel, plated, 1/2" - 20 thread, 5/8" (15.87mm) long Mounting Hardware Included 1 hex nut, 1 pal nut
Knob integral, chrome-plated brass.
Terminals two 8-32" screw
Panel Thickness through 1/8" (3.17mm) thick.
Case plated steel
Contacts copper alloy

Cole Hersee On-Off, normally On, Off with button depressed, spring return to On
M914-01
Your Cost $21.50

10A at 12V DC
On-Off, Normally On.
Off with button depressed,
spring return to On.
3/8-32 Threaded Stem
(2) Threaded Tabs with Screws for Wire Connections, Nylon Capped Button, Gasket Seal in Switch Casing, Marine Construction
Push To Shut Off Switch, Can be use as a Door Switch 12V DC 35 Amp .
9003
Your Cost $23.50

Push To Shut Off Switch
Can be use as a Door Switch
12V DC 5 Amp
On-Off, Normally On.
Off with button depressed, spring return to On.
1/2-20 Threaded Stem
(2) Threaded Tabs with Screws for Wire
National Stock Number 5930004632780

Cole Hersee Normally Open Push Button 12 Volt 35 Amp
9023
Your Cost $15.50


Cole Hersee 6-36V
12 Volt 8 Amp Push Button
OFF Mom ON
Normally Off push button
5/8 x 32" Threaded Stem Chrome Plated Button
& Face Nut
(2) 8-32 Threaded Terminals
Wire Connections


Push Button 12V DC 5 Amp
9052
Your Cost $15.80


Push Button 12V DC 5 Amp
Off Momentary On Switch
Good For Back-Up Alarm Light Switch, 12/24V
2 Positions, SPST
7/16-20 Threaded Stem
(2) Threaded Tabs with Screws for Wire
12 volt 10 Amp Pull Switch
9109
Your Cost $14.50

Pull Switch
12 Volt 10 Amp
1/2-20 Threaded Stem
Pull Switch Momentary Off-Mom On
Hole Through Shaft for
Attaching Cable or Lever
(2) Threaded Tabs with Screws Connections.
Cole Hersee Normally Closed Push Button 12 Volt 10 Amp
9115
Your Cost $15.50

Cole Hersee 6-36V
12 Volt 10 Amp
ON Mom OFF
12 Volt @ 8 Amp
Normally On push button
5/8 x 32" Threaded Stem Chrome Plated Button
& Face Nut
(2) 8-32 Threaded Terminals
Wire Connections

Cole Hersee Push Button 12 Volt 10 Amp
9187
Your Cost $8.50


Cole Hersee
12 Volt 10 Amp
Off-Mom On
15/32" Threaded
Mounting Stem
Black Plastic Button
(2) 6.4mm Blade Terminals
Wire Connections

Push Button On-Off,Two circuits are simultaneously energized.
9276-09
Your Cost $22.50

Push Button On-Off
Two circuits are simultaneously energized.

Off-Mom On, DPST
35A at 12V, 20A at 24V, 10A at 36V Silver Contact
Three screw terminals.
Mounting stem 5/8" - 32 thread, 21/32" (16.7mm) long.
Black plastic button and screw-on rubber cap



Cole Hersee Push Button Switches
90030
Your Cost $14.50
Normally Off: On with button depressed, spring return to Off Terminals
two 8-32 screws
Mounting Panel Thickness Up to 1/4"-
5/8"-32 (15.87 mm) dia.
Contacts: Silver
Button Plastic, 15/32" (11.90) diameter Face Nut cap and nut assembly, hex nut
Protective Cap: Yes
Housing die-cast Dimensions 1.120 dia.
Not Weather-Resistant Electrical Rating 35A at 12V DC, 20A at 24V DC


Cole Hersee Red Push Button Switches
90030-04
Your Cost $17.50
Normally Off: On with button depressed, spring return to Off Terminals
two 8-32 screws
Mounting Panel Thickness Up to 1/4"-
5/8"-32 (15.87 mm) dia.
Contacts: Silver
Button Plastic, 15/32" (11.90) diameter Face Nut cap and nut assembly, hex nut
Protective Cap: Yes
Housing die-cast Dimensions 1.120 dia.
Not Weather-Resistant Electrical Rating 35A at 12V DC, 20A at 24V DC

pollak Push Button 12-24 Volt
24-392P

Your Cost $12.75

Pollak Push Button On-Off
Off-Mom On, SPST
5/8-32" Stem Thread

50A at 12V, 25A at 24V
(2) Brass Turret/Button Terminals


22219
Your Cost $12.75


Universal 2 Terminal Push Button Off - No
Case Equipment
International 366317R93
1" Hole 1-3/4" Bolt Holes


Cole Hersee On-Off, normally On, Off with button depressed, spring return to On
90043-07
Your Cost $35.50

15A at 12V DC
Silver Contacts
Weather Protected
On-Off, Normally On.
Off with button depressed, spring return to On.
Plastic Coated Case, (2) 177.8mm Leads for Wire Connections
Mounting Panel Thickness Up to 5/8" (15.8 mm), Brass 5/8" - 32 thread (15.87 mm) dia.



Push Button 12V DC 5 Amp Plasticized Housing.

91105
Your Cost $22.50

Push Button 12V DC 5 Amp
Off Momentary On
Good For Back-Up Alarm Light Switch, 12/24V
2 Positions, SPST
7/16-20 Threaded Stem
(2) Threaded Tabs with Screws for Wire Plasticized
Housing
(2) 177.8mm Long 18 AWG Leads

Cole Hersee On-Off, normally Off Weather Protected
M-608
Your Cost $30.65

10A at 12V DC
Silver Contacts
Weather Protected
Normally Off .
button press, spring return to Off
Plastic Coated Case, (2) 177.8mm Leads for Wire Connections
Mounting Panel Thickness Up to 5/8" (15.8 mm), Brass 5/8" - 32 thread (15.87 mm) dia. M608 , M608BX

75 Amp Push - Pull Switch.
DS175
Your Cost $15.98

Push-Pull Switch
SPST
Positions: 2
Voltage:6/12/28
Terminals: 2

Amperage: 75
Mounting: 15/32-32 Threaded

Extra Heavy Duty ON-OFF Switch
with Chrome Plated Knob

Will Replace Pollak
35-306 , 35-306P , 35-306V


Back To Top Of Page
6 = 3/16" Terminal
3 Position Rocker Switch
On Off On
10 Amp @ 12 Volt
DPDT




12 Volt 20 Amp , Power Window, Door Locks, Small PM Motors.
T-73553
Your Cost $15.50


Special Applications Rocker Switch
Power Window, Door Locks,
Small Motors
Rocker Switch DPD
T Momentary
Mom On - Off - Mom On
20 Amp at 12V
"Snap-In" Panel Mount
7/ 8" x 13/16 " Rectangular Hole
(36.8mm x 21.1mm)
(6)3/16" Blade Terminals for Wire
Connections.
2 Position Rocker Switch
T-73556
Your Cost $7.50

3 = 3/16" Terminal
2 Position Rocker Switch
On Off
10 Amp @ 12 Volt
SPST


Battery Disconnect Switches
M284-01 175 Amp SPST Master Disconnect Switch
M28
4-01
$105.50

SPST Two positions: Off-On

Rated at 175A at 12V DC 6-36 Volt.
Mounting stem: 3/4-24".
3/8-24 Threaded Studs
Contacts: Silver.
UL marine listed
Case: Brass
50 Amp SPST Master Disconnect Switch
M288
Your Cost $79.80

SPST Two positions: Off-On

Rated at 50A at 14V DC.
Mounting stem: 5/8" (15.9mm) diameter, 3/4" (19.1mm) long. Fits panels up to 17/32" (13.5mm) thick.
Terminals: Two 10-32 brass screws. Actuator: Die cast lever.
Contacts: Silver.
Case: Plated steel.

M-288
175 Amp DPST Master Disconnect Switch 6-36 Volt
M290-01

$90.25
SOON TO BE NLA


DPST 6-36 Volt Battery Disconnect
O-Ring Sealed Shaft.
Switch 4 Terminal
Silver Laminated Contacts.
(2) 3/8-24 Battery Connections
1000A intermittent. on the 3/8"Studs for 15 sec. On, 5 min. Off
20 Amps Continuous for the 10-32 Studs . (2) 10-32 Studs Interrupt accessories
feed preventing electrical feed back when the master switch is turned off in OFF Position.
Same as the M289 & M290
The M290-01 has Silver Laminated Contacts &
O-Ring Sealed Shaft.


Single Pole battery disconnect, Two Positions: Off-On
2484
Your Cost $63.50

Single Pole battery disconnect,
Two Positions: Off-On
Rating: 6-36V DC; 175A continuous 1000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 3/8" copper studs
Actuators: chrome plated lever
Mounting Stem brass, 3/4" - 16 thread, 23/32" long,
Fits panel through 15/16" thick Case brass Installation Through hole - Clearance for 3/4" dia. mounting stem
Single Pole battery disconnect, Two Positions: Off-On with Silver Contacts.
2484-A
Your Cost $75.25

Single Pole battery disconnect,
Two Positions: Off-On
Rating: 6-36V DC; 175A continuous 1000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 3/8" copper studs.
Same as 2484-09 except has Silver Laminated Contacts.
Actuators: chrome plated lever
Mounting Stem brass, 3/4" - 16 thread, 23/32" long,
Fits panel through 15/16" thick Case brass Installation Through hole - Clearance for 3/4" dia. mounting stem

Single Pole battery disconnect, Two Positions: Off-On W/ Removable Key.
2484-03
Your Cost $90.50
Weather Resistant
Single Pole battery disconnect with removable keys
Two Positions: Off-On
Key removes in Off position Only
Rating: 6-36V DC; 175A continuous 1000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 3/8" copper studs
Actuators: chrome plated lever
Mounting Stem brass, 3/4" - 16 thread, 17/32" long,
Fits panel through 1/4" thick Case brass Installation Through hole - Clearance for 3/4" dia. mounting stem


2484-06 Single Pole battery disconnect, Two Positions: Off-On with Silver Contacts.
2484-06
Your Cost $77.50

Single Pole battery disconnect,
Two Positions: Off-On
Rating: 6-36V DC; 175A continuous 1000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 3/8" copper studs.
Sealed Mounting Stem
Weather resistant with O-ring seal
in operating shaft, Gasket-Sealed Terminal Insulation & Sealant In Mounting Stem & Case.

Actuators: chrome plated lever
Mounting Stem brass,
3/4" - 16 thread, 23/32" long,
Fits panel through 15/16" thick Case brass Installation through hole
.
Single Pole battery disconnect, Two Positions: Off-On with Silver Contacts.
2484-16
Your Cost $75.25

Single Pole battery disconnect,
Two Positions: Off-On
Rating: 6-36V DC; 175A continuous 1000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 3/8" copper studs.
Same as 2484 except has Silver Laminated Contacts & UL Marine Listed.
Actuators: chrome plated lever
Mounting Stem brass, 3/4" - 16 thread, 23/32" long,
Fits panel through 15/16" thick Case brass Installation Through hole -
82065 Cole Hersee Master Disconnect Switch Face Plate
82065
Your
Cost $4.55
Cole Hersee
Master Disconnect Switch Face Plate.
Polished Aluminum with Blue Enamel
Finish, 63.5mm Diameter.
82065-02 Cole Hersee Master Disconnect Switch Face Plate With Indexing Pin Hole
82065-02
Your
Cost $9.95
Cole Hersee
Master Disconnect Switch Face Plate
With Indexing Pin.
Polished Aluminum with Blue Enamel
Finish, 63.5mm Diameter.

Click On Switch To View Drawing for 75908 Battery Switch.
Click Here For Drawing
75908
Your Cost $125.50

Single Pole, Battery Disconnect Circuit Only
Two Positions: Off-On
Rating: 6-36V DC; 300A continuous 2000A intermittent.
15 sec. On, 5 min. Off
Terminals: two 1/2" copper studs
Actuators: chrome plated lever
Mounting Stem brass, 3/4" - 16 thread
Fits panel through 1/4" thick Case brass Installation Through hole - Clearance for 3/4" dia. mounting stem.

75912 12/36 Volt Master Disconnect Switch 125 Amp Continuous , 750 amp Intermittent.
75912
Your Cost $131.70

Master Disconnect Switch
DPST 125 Amp Continuous.
750A intermittent
15 sec's On, 5min Off.
12- 36V DC Silver contact surfaces.
Both poles are separately insulated.
Four 3/8" - 16 studs.
Lock washer and two brass hex nuts per stud are provided. 3/4" -16 brass mounting stem.
Operating temperature -40° to 85°F
( -40° to 29°C).
O-ring seal in mounting stem
gasket seal at terminal insulator.
Epoxy seal at case.
Heavy duty plated steel case.
Application:
Heavy Duty & Marine Applications

Click Here For More Information, 12/36 Volt Master Disconnect Switch 300 Amp Continuous
75920
Your Cost $90.75

Click Here For More Information

Master Disconnect Switch
Application:
Heavy Duty & Marine Applications
12 -36 Volt
300 Amp Continuous
Also for Use with 24V/250A & 36V/200A , Waterproof & Dust proof.
Terminals: two 3/8" copper studs
3/4-16 Threaded Stem
Can Be Locked When in Off Position. Composite Engineered Polymer Housing Will Not Corrode.
3000A Intermittent 12V for 15 Seconds

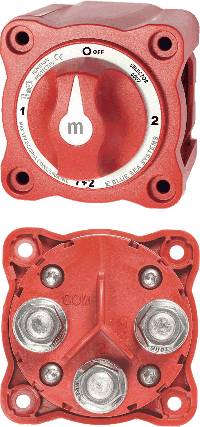

Blue Sea Selector 4 Position 6-32V DC  300A Continuous

6007
Your Cost $51.50

Blue Sea 4 Position Battery Selector
6-32V DC
Continuous Rating : 300A
Cranking Rating 10 sec : 1500A
Battery Inputs : 2
Cable Clearance: 4/0 AWG Cables
Cable Size to Meet Ratings 4/0 AWG
Terminal Stud Size : 3/8-16"
Terminal Stud Torque : 120 in-lb
(13.56 Nm)

Click Here For More Information



9604
Your Cost $128.75

Perko Marine Medium Duty Main Battery Disconnect Switch. With Alternator Field Disconnect & Lock Key.
6-32 Volts For use with alternators and generators rated 6-32 V.D.C. switch rating: 250 amperes continuous, 360 amperes intermittent.

Click Here For More Information

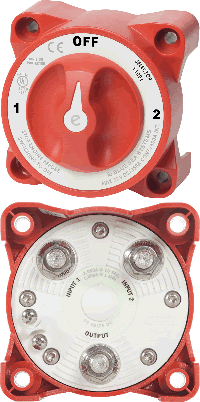

Blue Sea Selector 4 Position 6-32V DC  300A Continuous
11001
Your Cost $71.25

Blue Sea 3 Position Battery Selector
6-32V DC
Continuous Rating : 300A
Cranking Rating 10 sec : 2000A
Battery Inputs : 2
Cable Clearance: 4/0 AWG Cables
Cable Size to Meet Ratings 4/0 AWG
Terminal Stud Size : 10 mm / 3/8-16"
Terminal Stud Torque : 120 in-lb
(13.56 Nm)

Click Here For More Information

Master Disconnect Switch Off-On Max continuous current: 300A
Master Disconnect Switch Off-On Max continuous current: 300A
Click Here For More Information
880062S
Your Cost $52.50

Terra Power Systems
Master Disconnect Switch Off-On
6-48 Volt DC

Max operating voltage 48V DC
Max continuous current: 300A
(4) Bolt Panel Mount
Weather Sealed
SAEJ711 and ISO 8846 rating
(2) 3/8-16 Threaded Terminals

880175S Terra Power Systems Dual Master Battery Disconnect Switch.

880175S Terra Power Systems Dual Master Battery Disconnect Switch.
880175S
Your Cost $152.50

Terra Power Systems
Master Disconnect Switch
6-48 Volt DC

Max operating voltage 48V DC
Max continuous current: 500A per circuit, with 2 x 4/0 input and 2 x 4/0 output cables
350A per circuit, with 1 x 4/0 input and 1 x 4/0 output cables

Cranking rating (30sec) : 2250A per circuit, with 2 x 4/0 input and 2 x 4/0 output cables
1750A per circuit, with 1 x 4/0 input and 1 x 4/0 output cables

Inrush rating (1 sec) : 3000A per circuit with 2 x 4/0 + 1 x 2 AWG

Terminal stud size: M12 x 25mm.

Temperature range: -50° to 85°C, DC-Rated to 105°C
Humidity:"0 – 95% RH
Shock: 30 G
Vibration: 8 G
Ingress rating: IP67 & IP69K

24505 Cole Hersee Master Disconnect Switches Lockout Kit with .75" Mounting Stem
24505
Your Cost $18.50

Lockout Kit for Cole Hersee Rotary Master Disconnect Switches.
Master Disconnect Switches
with .75" Mounting Stem.
Accepts Padlocks
with Up to .625" Shackles.

002843011 Hella Battery Disconnect

002843011
Old Number 87181

Your Cost $39.50

6-24 Volt Hella Battery Disconnect
Single Pole battery disconnect
w/removable key
Two Positions: Off-On

UL Marine Listed
Rating: 6-24V DC;
1000 Amps Intermittent
@ 12 Volt for 10 seconds.
500 Amps Intermittent
@ 24 Volt
for 10 seconds.
50 Amp Continuous
Terminals: two 10 mm Studs
Actuators: Removable key
Replaces Hella 87181, H2764
John Deere AZ39127

Side Terminal Quick Disconnect For Side Terminal Batteries.
STQD
Your Cost $16.50
SIDE TERMINAL QUICK DISCONNECT
For Side Terminal Batteries
Loosen Knob to Open Circuit/Tighten to Close/Remove to Secure Electrical Circuit. 3/8 x 16" X 3/8" Hole

Dimensions 1 " W x 4" L x 1 1/4" H

24 Volt 250 Amp Hella Master Disconnect Switch
008458011
Your Cost $103.50


Hella Master Disconnect Switch
Off-On 24 Volt DC

Max continuous current: 250A
(2) Bolt Panel Mount
100mm Center To Center

IPX4 Rating Key Side
IP53 Rating Terminal Side
(2) 10mm X 1.5 Threaded Terminals
Can Replace Bosch 0331002003
0 341 002 003, 0-341-002-003
Terra Power Systems 08098800 08098800BX
HELLA 6EK008458-011 6EK008458011




Back To Top Of Page
Starter Motor Push Button Switches

Early Delco Starters
7-1000
Your Cost $14.50

Early Delco 6 Volt Push Type Starters Switch
Switch Positions: 2, Momentary,
Notes: 3/8-16 Battery Terminal,
Application: Early Delco Starters Can Replace Delco Switch Number1954976, 820052, D902
Early 6 Volt Delco Starters
7-1001
Your
Cost $12.50
Early 6 Volt Delco Starters
Lever Bracket Made to Switch,
Switch Positions: 2, Momentary,
3/8-16 Threaded Battery Terminal
Can Replace Delco Switch Number 1872405, 1918405, 1919576, 1919600, 1922609, 1925781, 1932131, 1940047, D903, D904, D905, D908, D909
Prestolite 15-121
7-1005
Your Cost $ 15.75
6/12 Volt Switch
Delco, Prestolite Starters ,
Can Replace Prestolite 15-121
15-122, 15-409, 15-45, 15-47, 15-50
15-51, SW2916, SW4001
Cole Hersee 9060 Switch Number
Includes Nuts & Washers for Studs, (2) 5/16-24 Studs,1.83" Plunger Height
Prestolite 15-49, 15-83 , Tommy Lift .
7-1006
Your Cost $ 23.50
6/12 Volt Switch
100 Amp
Momentary Push To Activate
(2) 7.1mm Holes, 38mm Apart
References:
Cole Hersee 9183, 9183BX
53-301 Pollak
C.E. Niehoff AL144
National Stock Number 5930008984178
Some Tommy Lift Applications
Delco 1996479
Some Fenner Stone Applications
John Deere AN151896
Komatsu 376295R91
Prestolite 15-49, 15-83,
SW4012, SW4014, SWX49

Early Delco 6 Volt Push Type Starters "R" Terminal on Side of Switch.
7-1007
Your Cost $15.50
Early Delco 6 Volt Push Type Starters Switch
Switch Positions: 2, Momentary,
"R" Terminal on Side of Switch
Notes: 3/8-16 Battery Terminal,
Application: Early Delco Starters Can Replace Delco Switch Number
Can Replace Delco 1930496, D906
Cole Hersee 91001




Trombetta Push Button Switch  26240C1 12/24 Volt 400 Amp Inrush
26240
Your Cost
$34.50

Trombetta Push Button Switch
12/24V 80 Amp 400 Amp Inrush
(2) 6.3mm ID Unthreaded Mounting Ears
Lift Gate Motors,
Material Handling
Hydraulic Pump Motors
Replaces Trombetta 26240C1,26240-1, 26240-2, 26240-3, 26240-4, 26240-5, 26240-6, 26240-7, 26240-8, 26240-9, 26240-10

Monarch Applications  Vendor 26763
26763
267630-AH
Your Cost
$62.50

Special Push Button Switch
Monarch Hydraulic Pump Motors.
Supplier: OEM(s): Monarch
Schematic: SPST
2 Terminals
Momentary: Yes
Weatherized: No
Normally Open Application:
Monarch Applications Reference Numbers: Miscellaneous Vendor Numbers 26763 , 267630, 267630A, 267630-AH
Trombetta 19832 , 19832-000
NLP BPL2250
Monarch 03416

12 Volt Monarch Applications  Vendor 267635A, Replaces 26763-5
267635A
Your Cost
$114.50

Special Push Button Switch
Trombetta Pump Motor Switch.
Supplier: OEM(s): Monarch
Schematic: SPST
2 Terminals 5/16-24 Studs
Momentary: Yes
Weatherized: No
Normally Open Application:
Monarch Applications
Trombetta numbers
26763-1, 26763-6, 267635, 26763-5




Head Light Switches
12 Volt Push-Pull Head Light Switch,
7124
Your Cost $30.50
Push-Pull Head Light Switch
Cole Hersee 3 - Position
Off - Park/Tail - Head/Tail
7/16-28 Threaded Stem
(4) Threaded Tabs with Screws for Wire Connections,
12 Volt Push-Pull Head Light Switch,
7124-06
Your Cost $32.50
Push-Pull Head Light Switch
Cole Hersee 3 - Position
Off - Park/Tail - Head/Tail
7/16-28 Threaded Stem
(4) Threaded Tabs with Screws
for Wire Connections,
12 Volt Push-Pull Head Light Switch,
7152
Your Cost $32.50
Push-Pull Head Light Switch
Cole Hersee - 3 Position
Off - Park/Tail - Head/Tail
7/16-28 Threaded Stem
(4) Threaded Tabs with Screws
for Wire Connections,
12 Volt Push-Pull Head Light Switch,
72100
Your Cost $52.50
Push-Pull Head Light Switch
Cole Hersee - 3 Position
Off - Park/Tail - Head/Tail
20A Per Circuit at 12V DC
7/16-28 Threaded Stem
Weatherized (4) Threaded Tabs with Screws for Wire Connections,
Case Sealed at Stem & Terminal Insulator
Universal Keyed On-Off Switches & Ignition Switches


Fit's some early Jeep models
31-103P
Your Cost $25.50
Specifications:
Universal Ignition Switch
Complete with lock cylinder
and 2 keys.
Switch has 4 pos. & 4 stud terminal.
Fits any hole 3/4" - 1-1/8"
Fit's some early Jeep models too.
Standard Number US14


11 Terminal 12 Volt Ignition Switch
31-114P
Your Cost $26.50

Specifications:
Ignition Switch
Complete with lock cylinder
and 2 keys.
Switch has 4 Positions
Acc-Off-On / Acc-Start
11 =1/4" terminal.
1" Threaded Stem with .130"
Indexing Tab
Amps Ign=8 , Acc=35, 75=Start
Housing Kit
2984017K Housing With Terminals 2984017K Packard OEM Terminals



Universal Ignition Switch Used on Heavy Duty Equipment & Forklifts

31-610P
Your Cost $23.75
Universal Ignition Switch
Complete with Anti-Restart, Pick-Proof Lock.
lock cylinder and 2 keys.
Switch has 4 positions. O-ring seal
Fits 3/4" hole Length 7/16"
12 volt 8 amp ignition circuit, 30 amp cranking circuit.
Used on Heavy Duty Equipment & Forklifts Replaces 31-610P - Pollak
Replaces Standard US126KA
US-126KA

Cole Hersee Ignition Switch
M550
Your Cost $45..80

Specifications:
Details All-Brass Construction
Terminals 3 Brass Screw Actuators
Coded Tumbler Lock, 2 Keys
Mounting Stem: 13/16" - 24 x 1-7/32"
Number of Positions: 3 Positions Off - Ign - Ign/Start Accessory (Current Rating at 12V DC)
Ignition/Run (Current Rating at 12V DC) 10A
Start (Current Rating at 12V DC) 5A
Contacts: Bronze
Case Material :Brass
Mounting Panel Thickness 1" (25.40mm)

Universal 2 Position Off-On Key Switch Can be used as a Ignition Switch.
M676
NLA
NON MARINE USE 9622-01

We may have some on hand
Your Cost $42.50

Marine Ignition Switch.
Universal
2 Position Off-On Key Switch
Can be used as a Ignition Switch.
Rated 12 Volt, 5 Amps.
Mounting 3/4-27 Threaded Stem.
Mounting Thickness 5/8" (15.87mm)
May be used in some AUTO CRANE control box's

Caterpillar Ignition Switch, 9G7641 / 31-197
9G7641
Your Cost $29.50

Caterpillar Ignition Switch.
2 keys Switch has 3 positions.
Fits 1 "Threaded Stem
12 volt 8 amp ignition circuit,
35 amp Accessory Circuit
75 Amp cranking circuit.
Off-On/Acc-Start
Used on Caterpillar Equipment Replaces 31-197

Cole Hersee Off - On Lever Actuated Switch 12 Volt 10 Amp.
9500
Your Cost $25.75

Cole Hersee
Off - On Lever Actuated Switch
12 Volt 10 Amp
Mounting, 1/2-20" Threaded Stem

(2) Threaded Bosses with Screws Wire Connections.

Pull ON Ignition Switch Push In Off
9576
Your Cost $37.50


Pull Ignition Switch
(Off Pushed Fully In)
-Ign/Acc-Ign/Start.
Spring return to Ign/Acc.

Ratings at 12V DC: 10A Accessory, 5A Ignition, 5A Start.
Four screw terminals.
Plated steel case.
3/8"-24 mounting stem fits panels up to 3/16" (4.8mm).
Includes hex nut and washer for mounting.
Black plastic screw-on knob.

COLE HERSEE ON-OFF2 POLE SWITCH 12V 10AMP
9577
Your Cost $24.50

2 Positions Key Switch
Off - ON 10 Amp Rating
ON and OFF Positions.

3/4-20" Threaded Stem


2 Positions Key Switch Off - ON 5 Amp Rating can remove key in on  and off Positions.
9622-01
Your Cost $35.50



2 Positions Key Switch
Off - ON 5 Amp Rating
Can remove key in both
ON and OFF Positions.

3/4-24 Threaded Stem

95521B Key Operates Cylinder 25 (IGN)/ 70 (START)
95521B
Your Cost $52.50

OFF-ON START
Circuitry: Off-ON-Star
t
Key Operates Cylinder 25 (IGN)/ 70 (START)
(Universal "Hencol" Keys)
3 Threaded Tabs with Screws Connections.

Sealed Plated Steel Casing
Mounting Stem:5/8-32 Threaded Stem


3 Positions Lever Switch Off - On  - Start
95612
Your Cost $34.50




OFF-ON START

Circuitry: Off-ON-Star
t
Lever Operates Cylinder
25 (IGN)/ 20 (START)
(3) Threaded Tabs with Screws Connections.

Sealed Plated Steel Casing
Mounting Stem:5/8-32 Threaded Stem

Lever Type Igntion Switch 4 Positions, Acc-Off-On/Acc-Start.
956-4124

Your Cost $39.50

Lever Type Ignition Switch
4 Positions, Acc-Off-On/Acc-Start
1"-24 Threaded Stem
12 Volt 10 Amp on ACC & IGN
5 Amp on Start Circuit


Military Lever Type Igntion Switch 4 Positions, Acc-Off-On/Acc-Start.
956-5109

Your Cost $68.50

Military Lever Style Ignition Switch
3 Positions, Off-On/Acc-Start
1"-24 Threaded Stem
12 Volt 20 Amp on ACC & IGN
O-Ring Seal in Base, Silver Contacts
10 Amp on Start Circuit


Marine Grade Ignition Switch
95060
Your Cost $27.50

Marine Grade Ignition Switch
10Amps @ 12 Volt

4 Positions Acc-Off-On/Acc-Start
Plastic Construction, Fully Sealed Spring Return Start.
Includes (2) Keys with Boots. Terminals ID:
1&6=Battery
2=Start
3=Accessory
4&5=Ignition

Deutsch Connector not included

Marine Grade Ignition Switch
95060-03
Your Cost $28.50

Marine Grade Ignition Switch
10Amps @ 12 Volt

3 Positions Off-On/Acc-Start
Plastic Construction, Fully Sealed Spring Return Start.
Includes (2) Keys with Boots. Terminals ID:
1&6=Battery
2=Start
3=Accessory
4&5=Ignition

Deutsch Connector not included

Marine Grade Ignition Switch
95060-07
Your Cost $28.50
Marine Grade Ignition Switch
10Amps @ 12 Volt

2 Positions Off-On/Acct
Plastic Construction, Fully Sealed Spring Return Start.
Includes (2) Keys with Boots. Terminals ID:
1&6=Battery
3=Accessory
4&5=Ignition

Deutsch Connector not included
Cole Hersee 4 Position Ignition Switch With Harness.
95060-50
Your Cost $55.50

Cole Hersee Ignition Switch
4 Position
Accessory - Off -
Ignition/ Accessory - Start

Will Work on 12V, 24V, 36V, 48V
Amperage 10A @ 12 Volt
Weather Sealed
Includes Wiring Harness 31101

Marine Grade Ignition Switch
95061-04
Your Cost $27.50

Anti-restart switch with lever handle.
3-Position W/Anti-Restart)
Lever Handle
Off-Ign/Acc/Start

10Amps @ 12 Volt
3 Positions Off-On/Acc-Start
Plastic Construction, Fully Sealed Spring Return Start.
Terminals ID:
1&6=Battery
2=Start
3=Accessory
4&5=Ignition

Deutsch Connector not included

6 Pin Deutsch Connector for 95060 Series Ignition Switches.
31101 Plug Kit
Your Cost $26.75

95060 Series Ignition Switch
6 Pin Deutsch Connector for 95060 Series Ignition Switches.
Wires 1&6=Battery, 2=Start, 3=Accessory, 4&5=Ignition

6 Pin Deutsch Connector Kit for 95060
95060PG Plug Kit
Your Cost $14.50

6 Pin Deutsch Connector for 95060 Series Ignition Switches.
Wires 1&6=Battery, 2=Start, 3=Accessory, 4&5=Ignition

Pre Made 31101 Pig-Tail Available.


Ignition/Start Toggle Switch Off-On-Mom On
58311-13
Your Cost $24.50
Soon to be NLA

Ignition/Start Rocker Switch
Off-On-Mom On
Bottom Position = Off
Center Position = Ignition
Top Position = Start
12-36V
20 Amp Max @ 12 Volt
"Snap-In" Panel Mount
1.48" x 0.83" Square Hole
(36.8mm x 21.1mm)
(4) 6.4mm Blade Terminals


Cole Hersee Universal Accessory Switch Military Lever Style
95633A
Your Cost $33.50

Cole Hersee Universal Accessory Ignition Switch
Off-On/Acc Switch
3/4-20 Threaded Stem
Moisture and fungus-resistant
per MIL-JAN-T-152
Military Lever Style
Lever Operates Cylinder
Die Cast Zinc Casing
12 Volt
10 Amp Rating

Can Replace 95633


Ignition/Start Toggle Switch Off-On-Mom On
59071
Your Cost $22.50
Ignition/Start Toggle Switch
Off-On-Mom On
Position = Off
Center Position = Ignition
Start Position = Ignition/Start
12-36V
20 Amp @ 12 Volt
15/32-32 Threaded Stem
White Plastic Handle
(3) 6.4mm Blade Terminals
Snapper Applications Ignition Switch 5/8" Stem
IGN 22043
Your Cost $35.75


Ignition Switch 5/8" Stem
3 position
2 Keys
Snapper Applications

Snapper Applications
Murray Applications Ignition Switch 5/8" Stem
IGN 22044
Your Cost $18.50


Ignition Switch 5/8" Stem
4 position
2 Keys
6 Terminal
Murray Applications
Briggs & Stratton 5411H


Murray Applications Ignition Switch 5/8" Stem
IGN 22045
Your Cost $41.50


Ignition Switch 5/8" Stem
4 position
2 Keys
7 Terminal
Murray Applications




Click Here To Return To The Electrical Area.

Click Here To Return To The Home Page.

Texas Industrial Electric Co.
San Antonio Texas
Phone 210-654-4075
Fax 210-599-2843

We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover

E-mail : TIE@TexasIndustrialElectric.com

Alternators - Starters Electrical Speedometer Drive Accessories Links

Copyright TexasIndustrialelectric.com 1981 / 2024
