TECH TIPS:
ELECTRIC FAN

Electric fans should be mounded using metal brackets that attach to either the radiator tanks or radiator.
It is not recommended to use nylon tabs as these tabs can cause damage to the tubes over time due to engine vibration.
When using
Hot Rod Air's line of reversible electric fans, the fan blades and the polarity of the motor must both be changed to convert fans from puller to pushers
or vice versa.
Whether using a single fan or a dual fan setup, a combined airflow rating of at least 2500 CFM must be achieved to cool an engine.
A puller fan mounted on the engine side of the radiator is recommended as the optimal electric fan setup. Although pusher fans on the grille side of the radiator can provide airflow, they can also restrict airflow created at highway speeds. The combination of a pusher fan on the grille side of the radiator and a puller fan on the engine side is not recommended as the two fans will "fight" one another causing less than optimal airflow.


Mustang Radiator
Electric Fan Area

Click Here To Visit The Mustang Radiator Area.
Click Here For
Electric Fan Wiring kits

ELECTRIC COOLING FANS / SHROUDS

Electric Cooling Fans & Shrouds

HEIGHT
WIDTH
DEPTH
CFM
PART NUMBER
YOUR COST
19"
25 1/8"
4 1/2"
2700
03-0040
18 1/8"
20 1/8"
4 1/2"
2700
03-0050
18 7/8 "
21 1/4 "
4 1/2"
2700
03-0070
Click Here To Go To The Electric Fan Relay Wiring Kits & Thermostat Switches Area

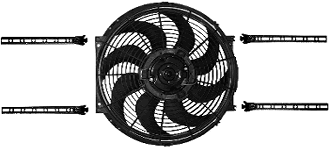

HIGH PERFORMANCE REVERSIBLE ELECTRIC FANS
DESCRIPTION
DIAMETER
DEPTH
CFM
PART NUMBER
YOUR COST
10" REVERSIBLE FAN "S" BLADE
10"
2.62"
1438
03-3010
12" REVERSIBLE FAN "S" BLADE
12"
3.22"
1771
03-3012
14" REVERSIBLE FAN "S" BLADE
14"
3.25"
1980
03-3014
16" REVERSIBLE FAN "S" BLADE
16"
4.17"
2416
03-3016
16" REV. 225 WATT FAN
"S" BLADE
16"
4.41"
2700
03-3216
DUAL 11" REVERSIBLE FAN
11"
3.22"
2060
03-0011
DUAL 13" REVERSIBLE FAN
13"
3.35"
2700
03-0013
Click Here To Go To The Electric Fan Relay Wiring Kits & Thermostat Switches Area
Reversible Fans come with 10 position metal mounting brackets

Spal  Electric Cooling Fans

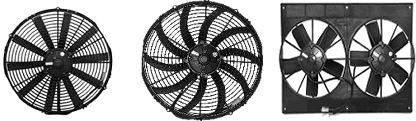

SPAL HIGH PERFORMANCE ELECTRIC FANS
SPAL HIGH PERFORMANCE ELECTRIC FANS
STRAIGHT
"S" BLADE DUAL 11" W/SHROUD
Click On The Fan Description For Technical Information
DESCRIPTION
DIAMETER
DEPTH
CFM
PART NUMBER
YOUR COST
10"
3.7"
1070
03-0182

10"
3.7"
1070
03-0181

11"
4.25
2780
03-0846

11"
3.7"
1390
03-0178

11"
3.7"
1390
03-0177

12"
3.7"
1630
03-0176

12"
3.7"
1630
03-0175

12"
3.39"
1360
03-9439

12"
3.39"
1360
03-9822

13"
3.39"
1710
03-9847

13"
3.39"
1710
03-9851

14"
3.39"
1720
03-0249

14"
3.39"
1720
03-0248

14"
3.39"
1720
03-9119

14"
3.39"
1720
03-9120

16"
3.39"
2360
03-0231

16"
3.39"
2360
03-0232

16"
3.39"
2070
03-9825

16"
3.39"
2070
03-9823

SPAL MOUNTING BRACKET EA.
99-0001

Click Here To Go To The Electric Fan Relay Wiring Kits & Thermostat Switches Area
