996152161 Hella Amp 24 Volt 10 Amp Time Delay Relay Adjustable 0-900 Seconds.
996152161 Hella Amp 24 Volt 10 Amp Time Delay Relay Adjustable 0-900 Seconds.

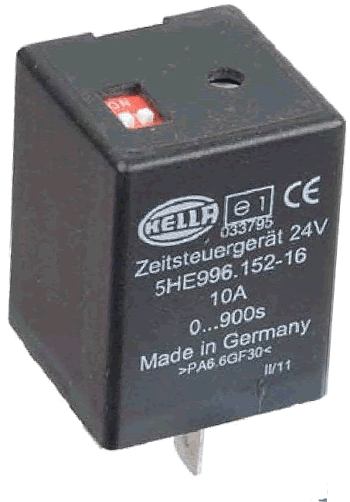

996152161 Hella 24 Volt 10 Amp Time Delay Relay
Adjustable From 0-900 Seconds
Delay on Operate
SPDT 5 Terminals
# 31 .250" (6.3mm x 0.8mm) Ground To Relay
# 15 .250" (6.3mm x 0.8mm) 24 Volt Off and On Power To Activate The Relay
# 30 .250" (6.3mm x 0.8mm) 24 Volt Main Battery Power To Relay
#87a .250" (6.3mm x 0.8mm) Normally Closed Circuit from Relay
#87 .250" (6.3mm x 0.8mm) Normally Open Circuit from Relay

Continuous Duty
5HE996152161
996.152.161

996152161 Hella Amp 24 Volt 10 Amp Time Delay Relay Adjustable 0-900 Seconds.
