12 Volt DC 40 amp heavy duty Hella relay H41410081

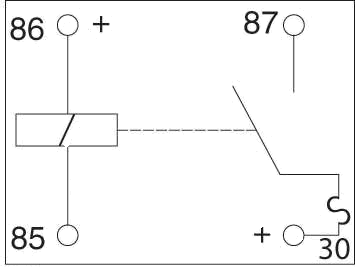

Hella Terminal Identification

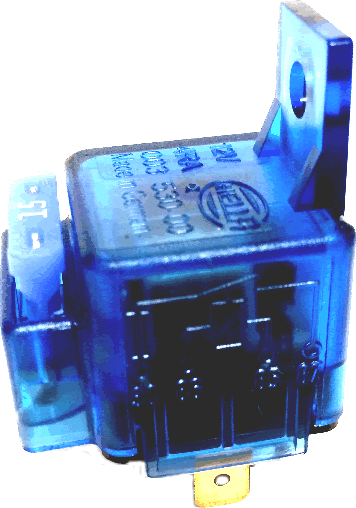

Hella 12 Volt 15 Amp Relay With Built In Fuse

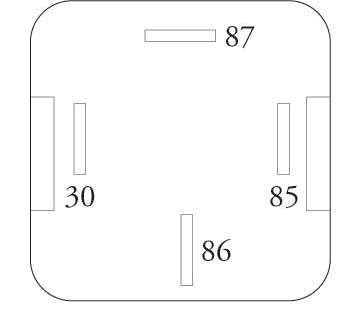

Bottom Footprint
Hella 12 Volt 15 Amp Relay With Built In Fuse

General Specifications
Hella 15Amp 12 VOLT DC
Mini Power Relay.
Includes 15A Fuse
Features a NO Circuit.
15A NO Circuit
# 85 .250
# 86 .250
# 30 .375"
# 87 .375

Continuous Duty
May Replace Other Hella Numbers
003510361, 4RA003530-00,
87105, 87108
John Deere AZ55251
Mitsubishi Z1519800
