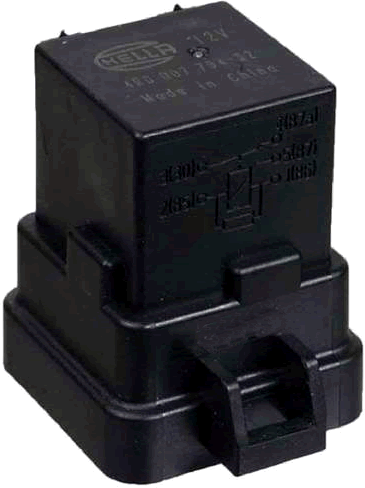

12 Volt DC 40 amp heavy duty Hella relay 007794321
Hella Terminal Identification

12 Volt DC 40 amp Hella Weaterproof Relay 007794321

General Specifications
12 Volt DC 40 amp Hella Weatherproof Relay 007794321
Voltage: 12V
Current: 40A
SPDT
Enclosure: WeatherProof Skirt No Bracket
Suppression: Resistor
Footprint: ISO 5 pin

Technical Data:

Nominal Voltage

12V

Rated Continuous Load

N/O 40A | N/C 20A at 85° C

Ambient Temperature

-40° C...+125° C

Contact Form

1 Form C / SPDT

Contact Material

AgSnO2

Operating / Drop out Voltage

≤ 8.0V /  ≥1.0V

Max. Coil Voltage

18V

Coil Resistance

85 Ohm ± 10% (excluding suppression component)

Suppression

Resistor, 680 Ohm

Mechanical Cycles

10,000,000

Operating / Releasing Time

≤ 10 ms / ≤ 10 ms

Dielectric Strength

≥ 1,000 VDC

Max. Inrush Load

150A lamp / 166A motor

Resistive Load / Switching Cycles

N/O 30A | N/C 20A, 150,000 cycles
N/O 40ª, 100,000 cycles

Inductive Load / Switching Cycles

N/O 35A, 100,000 cycles

Lamp Load (capacitive) / Switching Cycles

N/O 30A, 100,000 cycles

Vibration

20 - 200 Hz, 50m/s², 6 h per axis

Mechanical Shock

500 m/s², 11 ms, period: 1 min, 1,000 times

IP Rating

IP54 DIN IEC 60 529

May Replace Other Bosch & Hella Number
And Some GM Vehicle Applications
Bosch 0332204185
Hella 007794327,
007794-32, 4RD 007 794-32, 4RD960388-13
87405, 87408, 87413, H41388061, H41388131, H41388321
