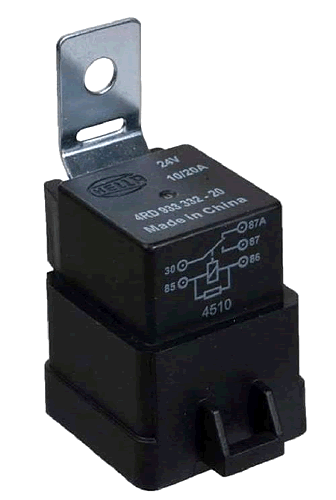

24 Volt DC 20 amp Hella Weatherproof Relay 933332201
Voltage: 24V
Current: 20A
Enclosure: WeatherProof Skirt W/Bracket
Suppression: Resistor 1200 Ohm
Footprint: ISO 5 pin
Single Pole, Double Throw (SPDT Switching)
Pin-out B1
With Mounting Bracket
AgSnO2 Contact Material
Operating / Releasing Time ≤ 10 ms / ≤ 10 ms
Rated Continuous Load N/O 20A | N/C 10A at 85°C
Dielectric Strength ≥ 1000 VDC
Ambient Temperature -40°C...+85°C
Max. Inrush Load 120 A
Contact Form 1 Form C / SPDT
Resistive Load / Switching Cycles
N/O: 20 A steady current, 100000 cycles
N/C: 10 A steady current, 150000 cycles
Contact Material AgSnO2
Inductive load / Switching Cycles
N/O: 16 A steady current, 100000 cycles
N/C: 8 A steady current, 100000 cycles
Operating / Drop out Voltage ≤ 15.6 V / ≥ 3.5 V
Lamp Load (capacitive) / Switching Cycles
N/O: 15 A steady current, 135000 cycles
N/C: 5 A steady current, 135000 cycles
Max.Coil Voltage 40V
Vibration 20 – 200 Hz, 5 g; no contact openings > 10 µs
Coil Resistance 277 Ohm ± 10% (incl. suppressioncomponent)
Mechanical Shock Min. 10 g, 11 ms; no contact openings > 10 µs
Suppression Resistor, 1200 Ohm
IP Rating IP54 DIN IEC 60 529
Mechanical Cycles 10,000,000
May Replace Other Hella Numbers
4RD933332-20, 87421, H41388541
4RD 933332-20, HL 87421
4RD 960 388-54
960388547
933332207
4RD 933.332.201
Tyco Relay Numbers.
VF4-65H11S08, VF4-65H21S08
|
