RC400112DN 40 Amp Relay with Diode

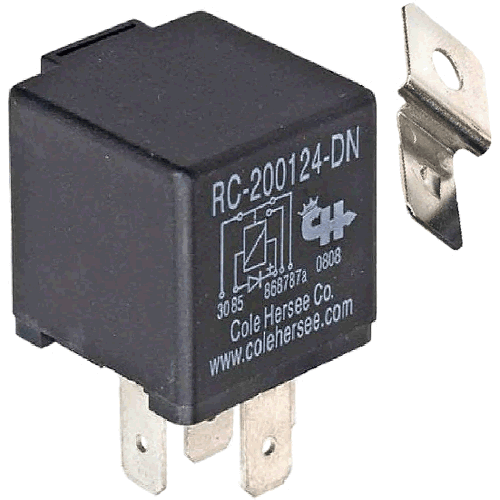

20 Amp Cole Hersee High Capacity Mini Relay
High Capacity Mini Relay
SPDT
Cap Material = Plastic

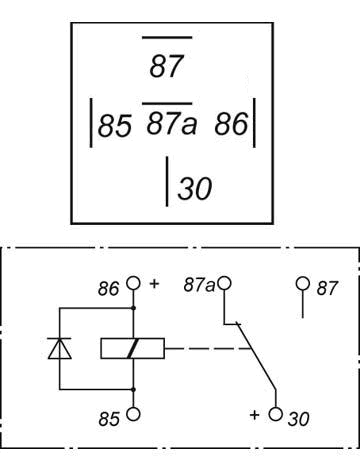

5 Terminals:
# 85 .250" Ground To Activate Relay
# 86 .250" 24 Volt Off and On Power To Activate The Relay.
# 30 .250" Main Battery Power To Relay.
# 87a .250" Normally Closed Connection to the # 30 Terminal.
# 87 .250" Normally Open Connection to the # 30 Terminal
To Load from Relay.
24 volts
20 amps
With Diode
Continuous Duty
Unsealed
Can Be wired to be used for Reversing Small Permanent Magnet Motors.
"2 Relays are Required"
Continuous Duty

RC400112DN 40 Amp Relay with Diode
