90 Degree speedometer adapters Box 407010-F and 411335-D Stewart Warner

90 Degree speedometer adapters Box 407010-F and 411335-D Stewart Warner
speedometer cables and housings assembly's custom made for street rods & hot rods,older model street cars,speedometer correction adapters,
speed-o cables & housings drive train correction ratio adapters,speedometer cables for trucks,tachometer drive cables and housings custom made.

custom made tachometer cables and housings for performance cars,trucks,boats, industrial equipment street rods & performance cars.

Custom made Speedometer Cable & Housings assembly's
for that Special Speedometer Head to Transmission connection.
Custom made mechanical Tachometer Cable & Housings assembly's
For older cars where the Tachometer drives off the distributor.
Speedometer Drive Train Correction Adapters for
Mechanical Drive Speedometers, for most 7/8"x18 Connections.
Speedometer Drivetrain Correction Ratio Adapters to correct your
Speedometer head reading for that special rear end
gear change or transmission combination.

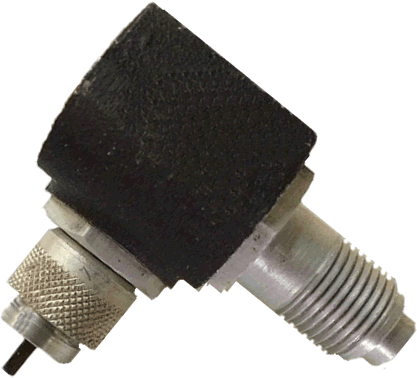

90 Degree Speedometer Head Adapter
5/8" x 18 Thread

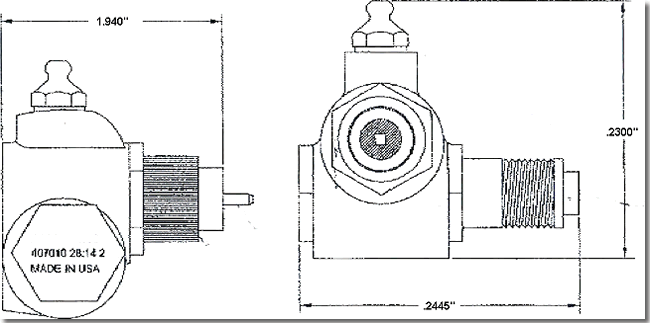

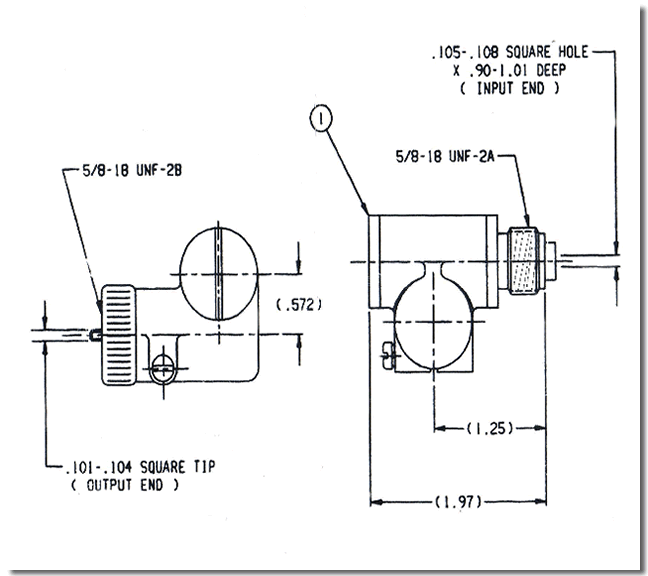

Drawing For The 407010-F Direct Drive & 411335-D Reverse Rotation .
