12/24 Volt DC SCM
SOLENOID CONTROL MODULE
The SCM Allows Increased Duty Cycle
of the 1119844 through the T-107-24 Series of Solenoids to.
12/24 Volt DC SCM SOLENOID CONTROL MODUEL

This SCM Replaces the Old Model with the 4 pin Deutsch Connector

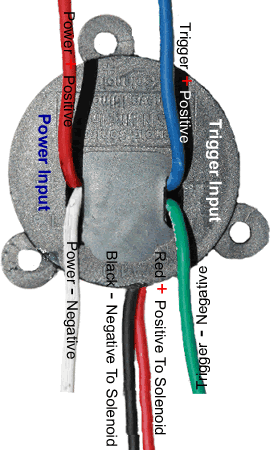

The New 4 Wire Hook-Up now will allow you to use your own choice of connectors for the Power & Trigger inputs.
The SCM Can be Mounted to the Single Stage Solenoids & Double Stage, 2 Collar Solenoids,
We would like to do this installation in our shop, so if you would like the SCM installed please let us know.
You Can Remote Mount the SCM in a location close to the Solenoid, and the Trigger Voltage can be from 2 -40 Volts DC .
Operation
:
The controller supplies required voltage to the solenoid coil, providing the energy necessary to pull in
the plunger, thus completing the electrical circuit. With the solenoid fully activated, the controller
drops the voltage down to a level of sufficient to maintain the plunger in a seated position.
Pulse Width
Modulation helps to manage heat build-up at the coil level during the time the solenoid is activated.
The solenoid relay activation sequence is started by applying a “trigger” voltage,
to the controller
module (2 to  40 volts).
The trigger can either be an external trigger or it can be activated by using the
same voltage as the solenoid coil input. The ability to use an external trigger is extremely useful when a solenoid requires a relatively large amount of power and you wish to control it with a low power voltage such as a TTL compatible signal.
The Solenoid Controller allows the user To either use and independent power and signal source or tie them together
(Positive to Positive & Negative to Negative) and to use another switch to turn the controller on and off.

PARAMETER
MINIMUM
MAXIMUM
Supply Voltage (Volts DC)
8
40
Peak Current (Amps)

20
RMS Current (Amps)

3
Trigger Voltage Range (Volts DC)
2
40
Temperature Range (C)
- 40
120
Holding Voltage to Supply Voltage Ratio(%)

25
Pick Time (Milliseconds)

200
