880175S Terra Power Systems Dual Master Battery Disconnect Switch.
6-48 Volt Intermittent Rating 3000 Amp, 500 Continuous.



Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
Click Here For Battery Isolators And DC to DC Equalizers Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Electrical Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Speedometer Cable & Ratio Box  Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Custom length Battery Cables made to your order
Honeywell / Hobbs Pressure Switches & Hour Meters
Click Here to View Starter Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Circuit Protection Devices Self Resetting Circuit Breakers From 10 to 150 Amp.
12 volt and 24 volt, 80 amp to 200 amp Momentary and Continuous Duty type Relays
universal ignition switches,heavy duty toggle switches,push pull type switches
Click Here to Vist Our Electrical Components Area. Electrical Plugs, Special  Electrical Connectors  & Wiring Parts.
Electric Fan Relay Wiring Kits,Thermostat Switches For Electric Cooling Fans.
Click Here to View Specials Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!

Click here For More Information

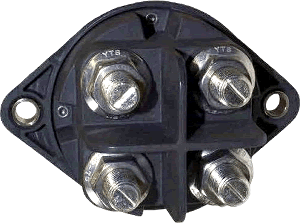

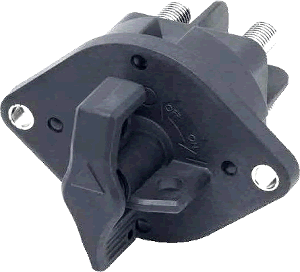

880175S Terra Power Systems Dual Master Battery Disconnect Switch. 880175S Terra Power Systems Dual Master Battery Disconnect Switch.

Max operating voltage 48V DC
Max continuous current: 500A per circuit, with 2 x 4/0 input and 2 x 4/0 output cables
350A per circuit, with 1 x 4/0 input and 1 x 4/0 output cables

Cranking rating (30sec) : 2250A per circuit, with 2 x 4/0 input and 2 x 4/0 output cables
1750A per circuit, with 1 x 4/0 input and 1 x 4/0 output cables

Inrush rating (1 sec) : 3000A per circuit with 2 x 4/0 + 1 x 2 AWG

Terminal stud size: M12 x 25mm. Alternate sizes available. Contact Littelfuse
Temperature range: -50° to 85°C, DC-Rated to 105°C
Humidity:"0 – 95% RH
Shock: 30 G
Vibration: 8 G
Ingress rating: IP67 & IP69K
