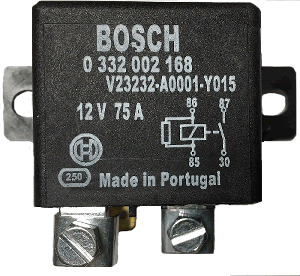

0 332 002 168 Bosch Relay 75 amp 12 volt

General Specifications Part Number: 0 332 002 168
0332002168
V23232-A0001-Y015
Voltage: 12 V
Continuous Duty With Resistor
Form: SPST
Enclosure: Standard cover w/bracket
Contact Material: Silver Nickel
Life Tests Resistive Load - N/O: 75 A - 100,000 cycles
Resistive Load - N/C: n/a
Motor Load - N/O: 60 A (250 A In-rush)- 40,000 cycles
Motor Load - N/C: n/a
Lamp Load - N/O: n/a
Lamp Load - N/C: n/a Mechanical Life: 1,000,000
Coil Specifications Coil Operating Current: 290 mA
Equivalent Coil Resistance: 46 +/- 3 ohm
Pull-in Voltage: <= 8.0 V
Drop-out Voltage: 1.5 - 4.0 V
Operating Conditions Operating
Temperature: -40 C to +100 C Humidity Test: 95% for 7 days
Salt Spray Test: 144 hours Dust Test: 8 hours

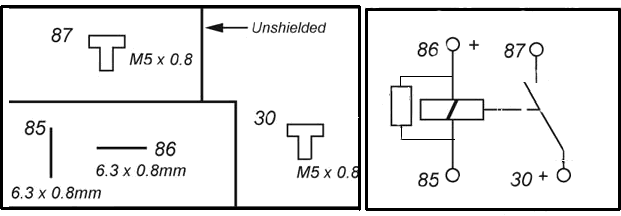

Bosch Relay 0 332 002 150 Drawing

Bosch Relay 0 332 002 150 Drawing
