General Specifications

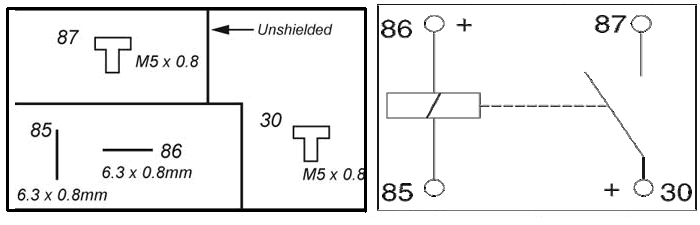

0 332 002 255 Bosch Relay 50 amp 24 volt

Bosch Part Number 0 332 002 255
Voltage:24 V
SPST, Pre-contact
Enclosure: Standard cover w/bracket
Operating Condition
Operating Temperature: -40 - 100 Cs
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Hours
Coil Specifications
Coil Operating Current: 200 mA
Equivalent Coil Resistance: 120 - 140 Ohms
Pull-in Voltage: < 18 V
Drop-out Voltage: 1 - 8 V
Life Tests: 50 A - 100,000 cycles
Resitive Load - N/O:
Motor Load - N/O:
40 A - 40,000 cycles
Mechanical life:
1,000,000 cycles

Bosch Relay 0 332 002 256 24 Volt 50 Amp.
Bosch Relay 0 332 002 255 24 Volt 50 Amp
