General Specifications

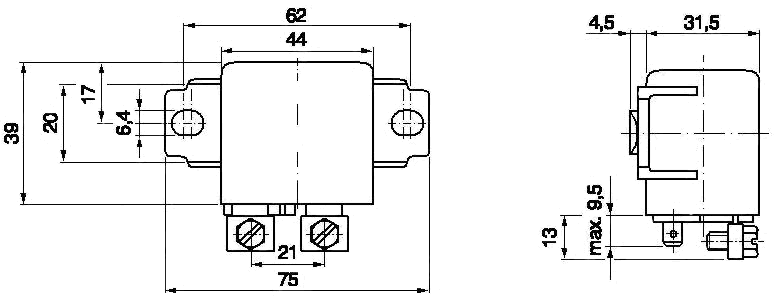

0 332 002 256 Bosch Relay 50 amp 24 volt

Bosch Part Number 0 332 002 256
Voltage:24 V

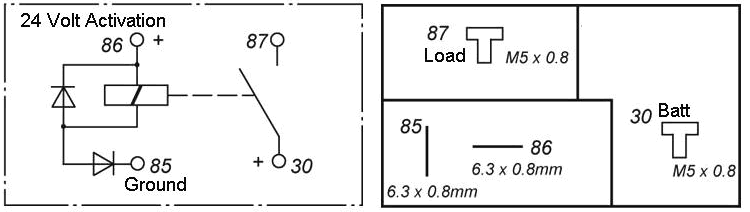

SPST, Pre-contact
Enclosure: Standard cover w/bracket
Suppression:
Features Parallel & Series Diodes
Operating Condition
Operating Temperature: -40 - 100 Cs
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Hours
Coil Specifications
Coil Operating Current: 200 mA
Equivalent Coil Resistance: 120 - 140 Ohms
Pull-in Voltage: < 18 V
Drop-out Voltage: 1 - 8 V
Life Tests: 50 A - 100,000 cycles
Resitive Load - N/O:
Motor Load - N/O:
40 A - 40,000 cycles
Mechanical life:
1,000,000 cycles

Replaces 0 332 002 256 315
0332002256 Bosch Relay 24 Volt
Tyco V23232 A0002 X009
V23232A0002X009

V23232A0002X009-EV-260
1904001-5

19040015
23232-A0002-X009

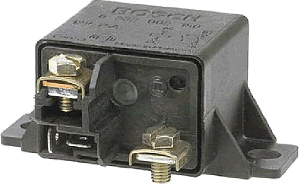

Bosch Relay 0 332 002 256 24 Volt 50 Amp Parallel & Series Diodes.
Bosch Relay 0 332 002 256 24 Volt 50 Amp Parallel & Series Diodes.
