Bosch 10 Amp Mini Relay 20 amp.
20 Amp Mini Relay
SPST
Normally Open Circuit
NO = 20 Amps
Cap Material = Plastic
4 Terminals:
Bosch Relay
SPST NO Contact
12V DC Coil
20 Amp

Continuous Duty
2 = 3/16" (4.8mm) Coil Terminals
2 = 1/4" (6.3mm) Load Terminals
0 332 011 007, 0332017300
0 332 017 303 0332011007 0332017300 0332017303
Tyco Number V23274A1601X001, V23274A1601Y001
Hella Number 007813011 4RA007813-01

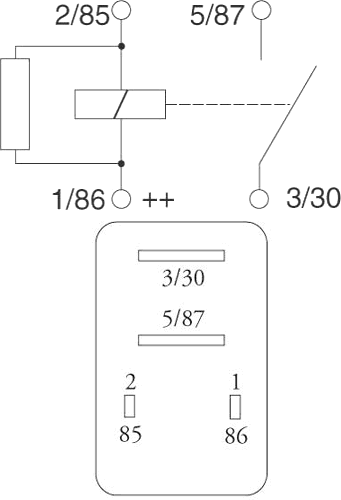

# 1/ 86 (6.3mm x 0.8mm) .187 12 Volt Off and On Power To Activate The Relay.
# 2 / 85 (6.3mm x 0.8mm)
.187" Ground To Activate Relay
# 3 / 30 (6.3mm x 0.8mm) .250" Main Battery Power To Relay.
# 5 (6.3mm x 0.8mm) .250" Normally Open Connection to the # 3 Terminal
To Load from Relay.

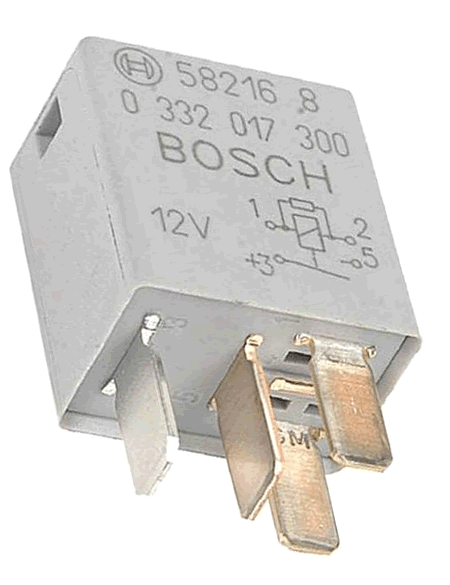

Bosch Relay 0 332 017 300 12 Volt 20 Amp Continuous Duty.
