12
Volt DC 30 Amp Continuous duty.
continuous duty type power relays 12 volt DC and 24 volt DC,30
amp to 1500 amp.
cole hersee, white rodgers,stancor,ametek,prestolite,momentary
and continuous duty type relays,
Auxiliary Starter Relays, Universal Relay Wiring kit for heavy
duty electrical loads
Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
|
General Specifications

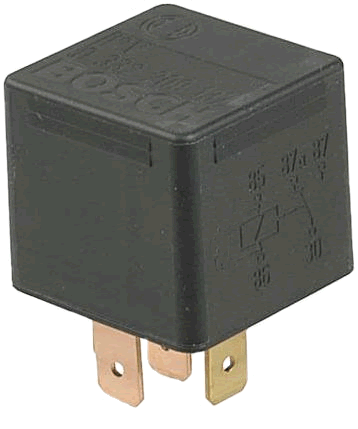

Bosch Part Number: 0332209151
Voltage: 12V
Current: 30A
SPDT
Enclosure: Standard Cover WO/Bracket

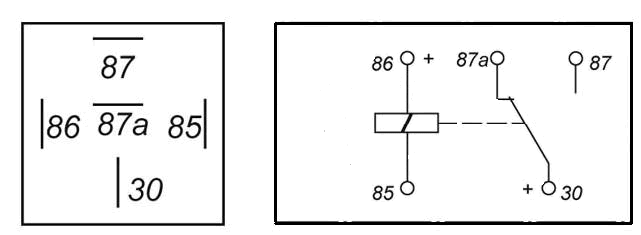

Footprint: ISO 5 pin
Coil Specifications
Coil Operating Current: 160 mA
Equivalent Coil Resistance: 69 - 80 Ohms
Pull-in Voltage: 8 V
Drop-out Voltage: 1.2 - 5 V
Operating Conditions
Operating Temperature: -40 - 100 C
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Days
Life Tests
Resitive Load - N/O: 50 A - 150,000 cycles
Resitive Load - N/C: 20 A - 100,000 cycles
Motor Load - N/O: 40 A - 150,000 cycles
Motor Load - N/C: 15 A - 75,000 cycles
Lamp Load - N/O: 30 A - 150,000 cycles
Lamp Load - N/C: 15 A - 50,000 cycles
Mechanical life: 1,000,000 cycles
|
|
