6/12 Volt DC Series Parallel Switch
1119845-6V 6 /12 Volt DC  Starter Relay

1119845-6V
6 Volt Series Parallel Switch Relay
6 Volt DC To 12 volt DC 1500 amp Series Parallel Switch
Used on Older Cars & Equipment
Start On 12 Volts & Keep Your Original 6 Volt Charging System.
Automotive & Industrial Applications.
Voltage: 6/12

Voltage: 6/12V DC
Double Stage
1500 Amp Intermittent duty Cycle
45 Amp Maximum Charge Back Circuit
Contacts: Silver
Flat Base type bracket Large studs: 3/8"16
Coil terminals: 10-32 Studs

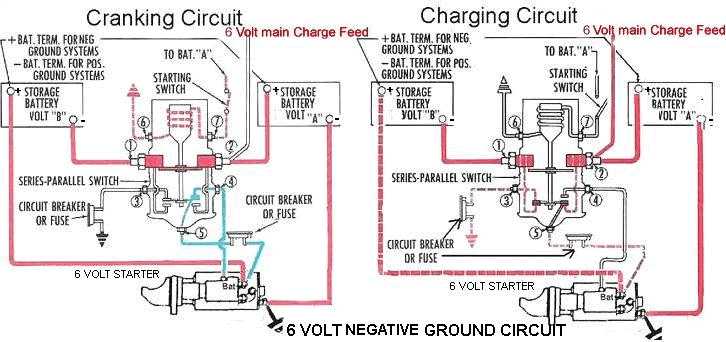

Typical Wiring Diagram For Negative Ground System

1119845 12 / 24 Volt DC  Series Parallel Switch Starter Relay
