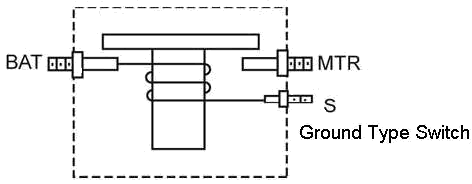

24060 Cole Hersee Relay Ground Actvated Coil Circuit.
24060 Cole Hersee Relay Ground Actvated Coil Circuit.
24060 Relay Motor Relay
Voltage Rating 12V DC
Contacts : Copper

Ground Activated Coil Circuit.

Specifications
Special Applications Universal
Insulated/Grounded Insulated
NO/NC normally open
Min Qty No
Circuitry SPST
Contacts copper
Housing plated steel
Voltage Rating 12V

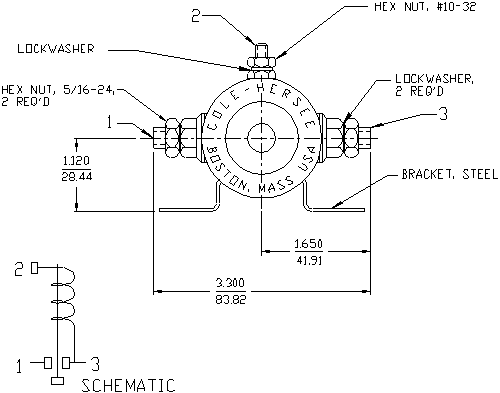

Terminals copper; 10-32 thread and 5/16"-24 thread. Hex nuts and lock washers included
Continuous Rating Not applicable: intermittent
Maximum Current, Make 750A
Maximum Current, Break 100A
Intermittent Time 10 sec. On - 20 min. Off
Bracket Straight

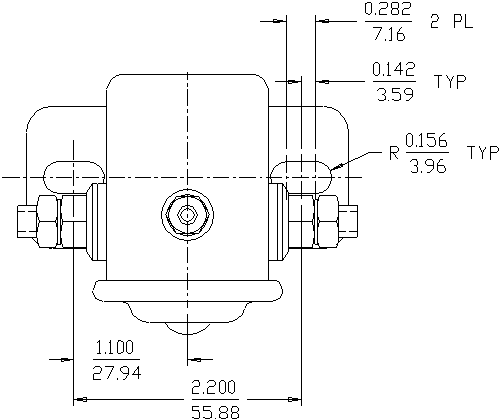

Bracket Mounting Holes 5/16" x 19/32", 2-13/64" on center
Breather Hole no
UL Marine & CE ISO 8846 Marine Not listed
Other Information
Coil wired to battery stud internally
Coil Current Draw Approximately 1.92 Amps

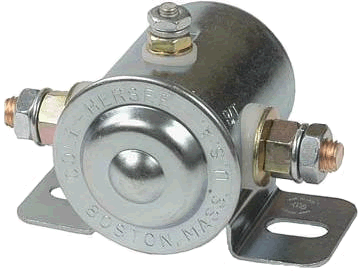

Cole Hersee 24060 RelayCole Hersee 24060 Relay

Cole Hersee 24060 Relay
