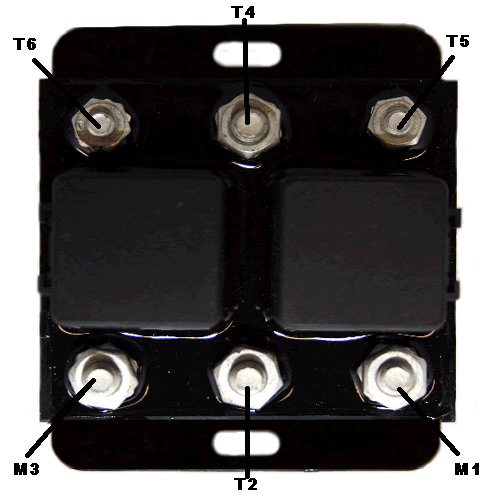

12 Volt DC Reversing Module Intermittent & Continuous Duty
Terminal 6 = Reverse
Terminal 4 = 12v + Positive
Terminal 5 = Forward
12 Volt DC Forward & Reverse Relay Module.
M3 = Motor Leads
Terminal 2 =12v - Ground
M1 = Motor Leads

24452
12 Volt DC Reversing Solenoid
Motor Reversing Relay Module with Dynamic Brake Capacity
70A Intermittent
50A Continuous
Heavy Duty Silver Contacts
25000 Minimum Cycle Life
"We Recommend That You Protect Terminal 4 With Circuit Protection Device"
.Suggestion: what ever the Motor Amperage Load is rated at use that size of Fuse or Circuit Breaker.
Use with a SPDT momentary toggle or rocker switch:
Toggle Switch (such as 55021)
Plastic Cover For Relay 97297

"Used for permanent magnet motors Only"
