H41524021 Hella 20 Amp 12 Volt SPDT Mini Relay

Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
Click Here For Battery Isolators And DC to DC Equalizers Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Electrical Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Speedometer Cable & Ratio Box  Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Custom length Battery Cables made to your order
Click Here to View Starter Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Circuit Protection Devices Self Resetting Circuit Breakers From 10 to 150 Amp.
12 volt and 24 volt, 80 amp to 200 amp Momentary and Continuous Duty type Relays
universal ignition switches,heavy duty toggle switches,push pull type switches
Click Here to Vist Our Electrical Components Area. Electrical Plugs, Special  Electrical Connectors  & Wiring Parts.
Electric Fan Relay Wiring Kits,Thermostat Switches For Electric Cooling Fans.
Click Here to View Specials Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!

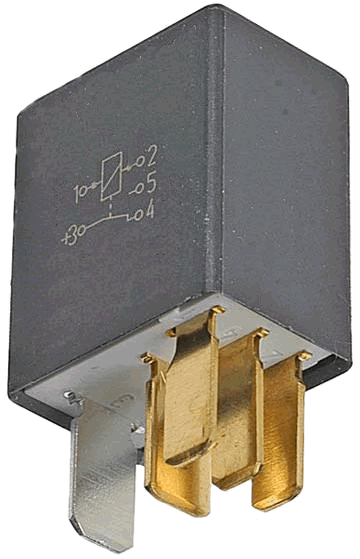

30 Amp Mini Relay 30/10 amp
HELLA H41524021

20 Amp Mini Relay
SPDT
Normally Open and Normally Closed Circuit
NC = 10 Amps
NO = 20 Amps
Cap Material = Plastic

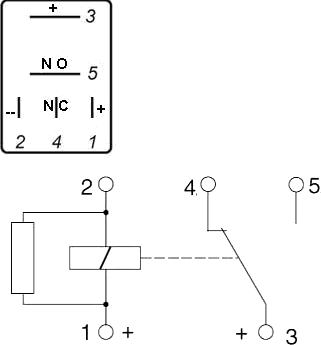

5 Terminals:
With Resistor 680 Ohms
# 1 (6.3mm x 0.8mm) .187 12 Volt Off and On Power To Activate The Relay.
# 2 (6.3mm x 0.8mm)
.187" Ground To Activate Relay
# 3 (6.3mm x 0.8mm) .250" Main Battery Power To Relay.
# 4 (6.3mm x 0.8mm) .187" Normally Closed Connection to the # 3 Terminal.
# 5 (6.3mm x 0.8mm) .250" Normally Open Connection to the # 3 Terminal
To Load from Relay.

12 Volts
25 Amps
Continuous Duty
Unsealed
Can Be wired to be used for Reversing Small Permanent Magnet Motors.
"2 Relays are Required"
Any Small Reversible Permanent Magnet Motor.

30 Amp Mini Relay NC & NO Circuits


Click Here To Return to The  Relay Area.


Click Here To Return To The Home Page.
