30 Amp Mini Relay
SPDT
Normally Open and Normally Closed Circuit
NC = 10 Amps
NC = 30 Amps
Cap Material = Plastic

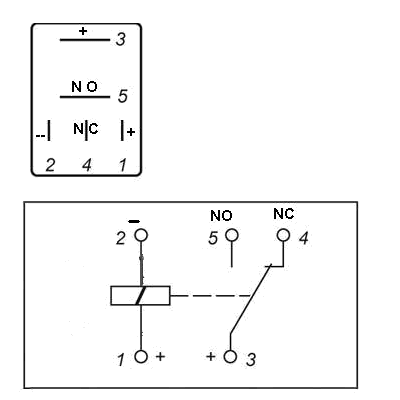

5 Terminals:
# 1 (6.3mm x 0.8mm) .187 12 Volt Off and On Power To Activate The Relay.
# 2 (6.3mm x 0.8mm) .187" Ground To Activate Relay
# 3 (6.3mm x 0.8mm) .250" Main Battery Power To Relay.
# 4 (6.3mm x 0.8mm) .187" Normally Closed Connection to the # 3 Terminal.
# 5 (6.3mm x 0.8mm) .250" Normally Open Connection to the # 3 Terminal To Load from Relay.
12 volts
75 Ohms Resistor
30 amps
Continuous Duty
Unsealed
Can Be wired to be used for Reversing Small Permanent Magnet Motors.
"2 Relays are Required"
Any Small Reversible Permanent Magnet Motor.
