CD 30ARK 30 Amp 12 Volt SPST & SPDT Relay Kit
Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
30 Amp Relay Kit
Cap Material = Plastic

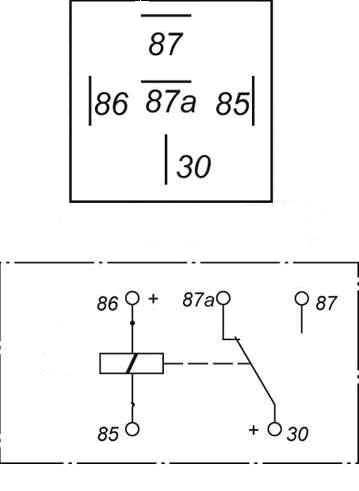

# 85 .250" Ground To Activate Relay
# 86 .250" 12 Volt Off and On Power To Activate The Relay.
# 30 .250" Main Battery Power To Relay.
# 87a .250" Normally Closed Connection to the # 30 Terminal.
# 87 .250" Normally Open Connection to the # 30 Terminal To Load from Relay.
Can Be wired to be used for Reversing Permanent Magnet Motors.
"2 Relays are Required"
Any Small Reversible Permanent Magnet Motor.
