40 Amp 12 Volt SPDT Cole Hersee RC400112RN High Capacity Mini Relay
Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
40 Amp Cole Hersee High Capacity Mini Relay
High Capacity Mini Relay
Cap Material = Plastic

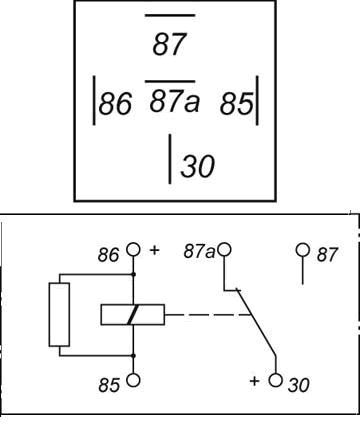

# 85 .250" Ground To Activate Relay
# 86 .250" 12 Volt Off and On Power To Activate The Relay.
# 30 .250" Main Battery Power To Relay.
# 87a .250" Normally Closed Connection to the # 30 Terminal.
# 87 .250" Normally Open Connection to the # 30 Terminal To Load from Relay.
100 Ohms Coil
Can Be wired to be used for Reversing Small Permanent Magnet Motors.
"2 Relays are Required"
