70 Amp 12 Volt SPDT Cole Hersee High Capacity Mini Relay
Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
70 Amp Cole Hersee High Capacity Mini Relay
High Capacity Mini Relay
Cap Material = Plastic

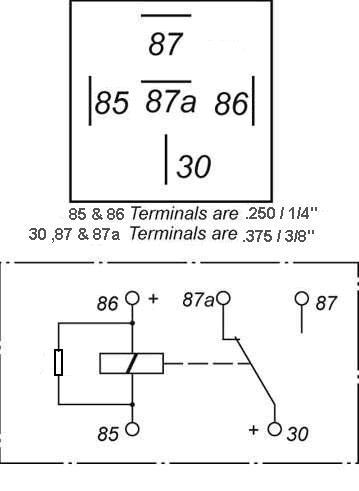

# 85 .250" Ground To Activate Relay
# 86 .250" 12 Volt Off and On Power To Activate The Relay.
# 30 .375" Main Battery Power To Relay.
# 87a .375" Normally Closed Connection to the # 30 Terminal.
# 87 .375" Normally Open Connection to the # 30 Terminal To Load from Relay.
Coil / Resistor
100 Ohms Coil
Can Be wired to be used for Reversing Permanent Magnet Motors.
"2 Relays are Required"
Such as Small Winches, Small Hoist
Any Small Reversible Permanent Magnet Motor.
